Solid-state joining avoids many fusion-welding issues associated with melting and solidification, including solidification cracking and certain forms of porosity. However, friction stir welding introduces its own thermo-mechanical challenges in aluminum alloys. Undetected defects in critical aluminum components can reduce fatigue performance, increase scrap and rework costs, and create production bottlenecks.
Whether manufacturing electric vehicle battery trays, aerospace panels, or automotive structural parts, maintaining joint integrity requires careful control of the welding process. Achieving consistent, high-quality production requires a clear understanding of defect morphology, root causes related to process parameters, and appropriate inspection and non-destructive testing methods.
By controlling these factors, manufacturers can fully leverage Friction Stir Welding Aluminum to produce reliable, high-performance joints for demanding applications. Effective quality control therefore requires looking beyond surface appearance to understand the material flow and bonding conditions beneath the tool shoulder.
Solid-State Does Not Mean Defect-Free: Friction stir welding aluminum avoids solidification-related cracking but can still develop process-related defects such as wormholes, kissing bonds, and excessive flash.
Heat Input is a Critical Variable: Many internal and surface defects are associated with an imbalance between heat generation and material flow, which are strongly influenced by spindle speed and traverse speed.
Hidden Flaws Can Compromise Fatigue Life: Sub-surface defects, particularly lack of penetration and kissing bonds, can significantly reduce the fatigue performance of aluminum joints even when the weld surface appears visually acceptable.
Material Condition Matters: Cast aluminum alloys can present defect risks that differ from those of wrought alloys, including the influence of pre-existing porosity, oxide films, and variations in casting microstructure on material flow and weld quality.
In-Process Monitoring Supports Production Scale-Up: Transitioning from R&D to high-volume production can benefit from monitoring process variables such as axial force, spindle torque, and temperature, combined with appropriate post-weld inspection and NDT.
Establishing a baseline for acceptable weld quality requires defining clear acceptance criteria. Joint integrity cannot be evaluated purely by surface appearance, as a visually smooth weld may still contain internal defects. Weld quality should therefore be assessed using measurable criteria such as required tensile strength, fatigue performance, dimensional requirements, and visual acceptance limits.
Material flow around the rotating tool differs between the advancing and retreating sides, and defect formation can be influenced by tool geometry, welding parameters, alloy condition, joint configuration, and heat input. Understanding these interactions is essential for identifying the likely causes and locations of FSW defects.
Differences in thermal conductivity, strength, and material-flow behavior can significantly affect the defect risk when friction stir welding dissimilar aluminum alloys. For combinations such as 6xxx-to-7xxx alloys, material flow may become asymmetrical, making tool position, material placement, and tool offset important process variables. The optimum offset and advancing/retreating-side arrangement should be established for the specific alloy combination, thickness, joint design, and welding conditions.
Cast aluminum introduces additional considerations because pre-existing porosity, oxide films, casting microstructure, and local material variations can influence material flow and weld quality. During FSW, trapped gas and casting defects may contribute to surface or internal imperfections under certain processing conditions. Appropriate heat input, tool design, plunge depth, and welding parameters should therefore be optimized for the specific casting alloy and component.
To establish a robust production baseline, engineering teams can use a structured validation sequence combining destructive and non-destructive evaluation to define a suitable process window. The following steps provide a typical validation approach for a new aluminum FSW joint:
Conduct a controlled parameter sweep across suitable spindle-speed and traverse-speed ranges.
Perform tensile testing on selected weld samples to evaluate joint strength and identify promising parameter combinations.
Conduct macro-sectioning on representative samples to evaluate weld consolidation, penetration, and internal defects.
Perform fatigue or other application-specific mechanical testing where required by the component or qualification standard.
Correlate validated welding parameters with available process data, such as axial force and spindle torque, to support production monitoring and process control.
Identifying the root cause of a defect requires understanding the mechanical forces at play beneath the tool. Defects generally fall into distinct categories based on their location and formation mechanism. We categorize these flaws to streamline troubleshooting on the production floor.
Insufficient heat input, excessive traverse speed, or unstable material flow can lead to inadequate plasticization and consolidation around the rotating tool. When the material does not flow and consolidate properly behind the pin, volumetric defects such as tunnels, wormholes, or cavities may form within the weld.
These defects are often associated with specific regions of the stir zone and may not be visible from the weld surface, making cross-sectional analysis or suitable non-destructive testing important for detection.
When a volumetric defect is identified, engineers should evaluate heat input, traverse speed, tool geometry, plunge depth, and material flow conditions. Depending on the root cause, adjustments such as increasing spindle speed or reducing traverse speed may improve plasticization and consolidation.
Inadequate plunge depth, insufficient pin penetration, joint fit-up conditions, or retained oxide layers near the weld root can contribute to root flaws.
Kissing bonds are tightly contacting interfaces with insufficient bonding, often associated with retained oxide layers or inadequate material disruption at the joint interface. These flaws can be difficult to detect because they may produce little or no volumetric separation. Depending on defect orientation, joint geometry, and inspection requirements, advanced ultrasonic techniques and/or destructive metallographic evaluation may be needed for reliable detection.
In butt joints, lack of penetration can act as a sharp root discontinuity and promote fatigue crack initiation under cyclic loading. Corrective actions should be based on the identified cause and may include optimizing pin length, plunge depth, axial force, joint fit-up, or pre-weld surface preparation.

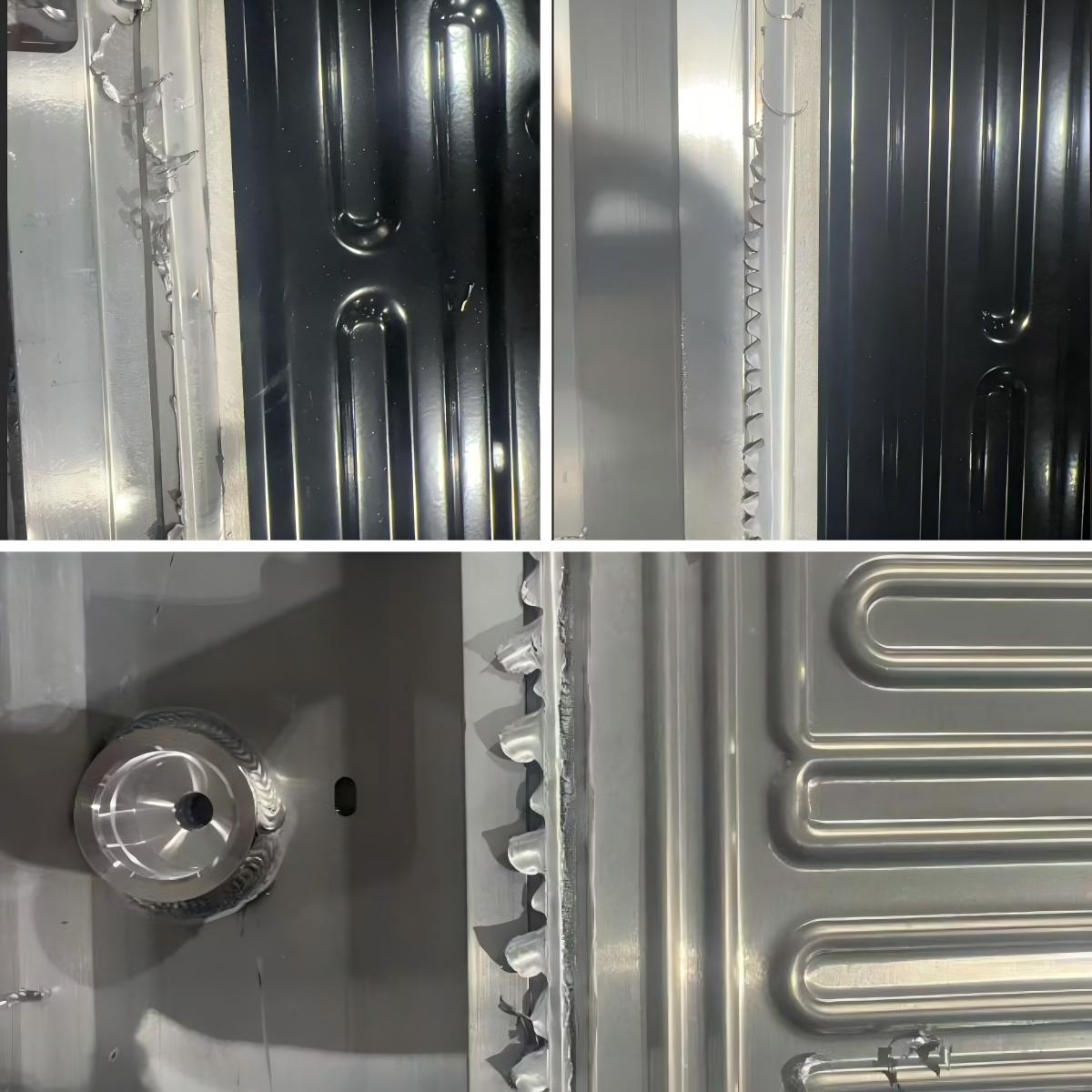

Excessive heat input from high spindle speed or low traverse speed can cause plasticized aluminum to extrude outside the weld zone, while excessive tool downforce or plunge depth can further increase flash formation.
Excessive flash is usually visible during surface inspection and may require secondary machining when it exceeds the allowable acceptance criteria. Rough or torn surface morphology can result from insufficient heat generation, inadequate shoulder contact, unstable material flow, or inappropriate welding parameters.
Optimizing heat input, shoulder geometry, plunge depth, axial force, and travel conditions can help improve surface consolidation and reduce these defects.
Hooking can occur in lap joints when material from the lower sheet is displaced upward into the upper sheet during welding, distorting the original interface and reducing the effective load-bearing thickness of the joint.
The shape and severity of the hook depend on factors such as tool geometry, plunge depth, tool offset, material thickness, and welding parameters. Metallographic cross-sectioning is commonly used to evaluate hook morphology during process development and qualification.
Optimizing pin geometry, plunge depth, tool position, and welding parameters can help control hook formation and improve the mechanical performance of lap joints.
Defect Classification | Primary Root Cause | Corrective Action |
|---|---|---|
Wormholes / Tunnels | Insufficient plasticization or unstable material flow | Optimize spindle speed, traverse speed, plunge depth, and tool geometry |
Lack of Penetration (LOP) | Insufficient pin penetration, incorrect pin length, or inadequate plunge depth | Verify pin length and optimize plunge depth and axial force |
Kissing Bonds | Retained oxide layers or insufficient interface disruption | Improve surface preparation and optimize penetration, axial force, and material flow |
Excessive Flash | Excessive heat input, plunge depth, or axial force | Optimize spindle speed, traverse speed, plunge depth, and axial force |
Hooking (Lap Joints) | Material flow around the pin during lap welding | Optimize pin geometry, plunge depth, tool position, and welding parameters |
Surface Galling / Rough Surface | Insufficient heat, inadequate shoulder contact, or unstable material flow | Optimize heat input, shoulder contact, plunge depth, and travel conditions |
Balancing spindle speed and traverse speed is important for generating sufficient heat and maintaining stable material flow without melting the aluminum. An appropriate process window helps reduce the risk of insufficient-consolidation defects at low heat input and excessive flash at high heat input.
The process window should also account for variations in material thickness, alloy condition, joint configuration, and production conditions. Shoulder geometry plays an important role in heat generation, material containment, and surface consolidation. Concave and scrolled shoulders offer different material-flow characteristics, while certain scrolled-shoulder designs can support zero-tilt welding, which may simplify robotic programming and improve accessibility in restricted geometries.
Selecting an appropriate pin profile helps control vertical and horizontal material flow around the tool. Threaded, fluted, tapered, and other pin geometries may be selected according to alloy properties, material thickness, joint configuration, and required weld depth.
High-strength alloys such as 7075 generally require careful consideration of tool strength, wear resistance, pin geometry, and process loads. Both force-controlled and position-controlled systems can be used depending on the application. Maintaining appropriate axial force and plunge depth is important for achieving consistent root penetration, while force-control systems can help compensate for certain variations in material thickness or workpiece position during production.
Appropriate pre-weld surface preparation can help reduce the risk of oxide- and contamination-related bonding defects. Depending on the alloy, surface condition, storage history, and application requirements, mechanical cleaning or other suitable surface-preparation methods may be used before welding.
However, surface preparation alone does not guarantee the elimination of kissing bonds. Tool penetration, axial force, joint fit-up, material flow, and welding parameters should also be controlled to promote sufficient disruption and bonding at the joint interface.
Balancing spindle speed and traverse speed maintains the aluminum within its optimal plasticized temperature range without melting. Optimizing this heat input matrix prevents both cold-weld voids and hot-weld flash. You must establish a process window that accommodates minor variations in material thickness and ambient temperature. Evaluating shoulder designs helps achieve proper surface consolidation. Concave and scrolled shoulders offer different advantages for flash containment. A scrolled shoulder allows for zero-tilt welding, which simplifies robotic programming and reduces clearance issues in tight geometries.
Selecting the right pin profiles optimizes vertical and horizontal material flow. Threaded, fluted, and tapered pins address different alloy viscosities. For hard alloys like 7075, a robust tapered pin with flats provides aggressive stirring without snapping under high lateral loads. Trade-offs exist between force-controlled and position-controlled equipment. Calibrating downforce and plunge depth maintains consistent root penetration despite material thickness variations. Force-control systems automatically adjust the Z-axis position to maintain a constant forging pressure, drastically reducing the occurrence of lack of penetration over long extrusion welds.
Mitigation protocols for eliminating kissing bonds require strict pre-weld surface preparation. Removing heavy oxides and surface contaminants prior to welding ensures a clean solid-state interface. We mandate mechanical brushing or laser cleaning immediately before the parts enter the welding fixture. Relying on the tool to break up heavy oxide layers is a high-risk strategy that inevitably leads to intermittent kissing bonds and failed fatigue tests.
Phased Array Ultrasonic Testing (PAUT) is widely used for detecting certain sub-surface defects in FSW joints, including volumetric flaws and some lack-of-penetration conditions. By electronically controlling multiple ultrasonic elements, PAUT can provide detailed information about indications within the weld region.
X-ray and radiographic methods can be effective for detecting volumetric cavities but may have limited sensitivity to tightly contacting planar defects such as kissing bonds, depending on defect orientation and inspection conditions. During initial process validation, destructive methods such as macro-sectioning, bend testing, and tensile testing can be combined with NDT to establish a reliable quality baseline.

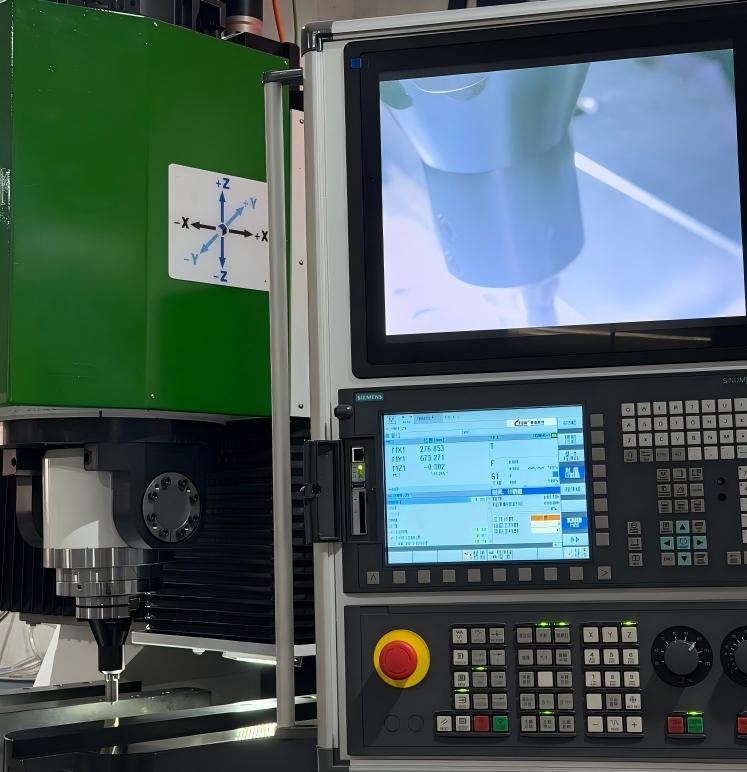

In-process monitoring can provide additional information about welding stability during production. Process variables such as spindle torque, axial force, tool position, temperature, and other available signals may change when welding conditions become unstable.
When these signals are correlated with inspection and destructive-test results during process validation, manufacturers can establish monitoring limits for identifying potentially nonconforming weld regions. Process monitoring does not replace post-weld inspection, but it can provide valuable early warning of parameter drift or abnormal welding conditions in high-volume production.
A production QA plan can combine multiple inspection and monitoring methods according to the component, production volume, defect risk, and applicable quality requirements. A typical layered approach may include:
In-process monitoring of axial force, spindle torque, tool position, or other relevant process variables where available.
Visual inspection of the weld surface for excessive flash, surface irregularities, and other visible defects.
PAUT or other suitable NDT methods at sampling rates defined by component criticality, production requirements, and applicable acceptance criteria.
Periodic destructive testing, such as macro-sectioning or mechanical testing, during process validation, qualification, and production verification where required.
Friction Stir Welding Aluminum can deliver excellent joint quality and structural performance when process parameters, tooling, and inspection procedures are carefully controlled. By optimizing heat input, maintaining consistent material flow, and implementing appropriate quality assurance strategies, manufacturers can minimize welding defects and support long-term product reliability.
Working with an experienced friction stir welding technology provider can also help manufacturers establish stable production processes and consistent weld quality. Zhihui specializes in friction stir welding equipment, customized FSW solutions, welding services, tooling, and technical support for aluminum applications across automotive, aerospace, rail transit, battery, and other industrial sectors.
Before full-scale production, process feasibility, welding parameters, tool selection, fixturing, and inspection requirements should be evaluated according to the specific component and application.
Use appropriate pre-weld surface preparation to reduce contamination- and oxide-related bonding risks.
Use available force, torque, position, or other process-monitoring data to identify parameter drift and abnormal welding conditions during production.
Establish an inspection plan using PAUT or other suitable NDT methods according to joint criticality, defect risk, and applicable acceptance requirements.
A: Excessive flash can result from excessive heat input, high spindle speed, low traverse speed, excessive plunge depth, or excessive axial force. These conditions can cause too much plasticized aluminum to be displaced from beneath the tool shoulder. The appropriate corrective action depends on the specific alloy, material thickness, tool geometry, and welding conditions.
A: Kissing bonds are tightly contacting interfaces with insufficient bonding and little or no volumetric separation, which makes them difficult to detect using conventional inspection methods. Advanced ultrasonic techniques such as PAUT may be used depending on defect orientation, joint geometry, and inspection conditions. Destructive metallographic examination can also be used during process development and qualification to evaluate interface bonding.
A: A tunnel defect is a volumetric void formed within the weld, typically associated with inadequate material flow or consolidation. Lack of penetration is a root flaw in which the tool does not provide sufficient penetration or bonding through the full required joint depth. Although both can reduce joint performance, they differ in formation mechanism, location, and defect morphology.
A: Hooking occurs when the original interface between the overlapping sheets is displaced upward during welding. This can reduce the effective load-bearing thickness of the lap joint and create a local stress concentration. Its effect on tensile and fatigue performance depends on hook height, shape, location, joint geometry, material properties, and loading conditions.
A: No single NDT method can reliably detect every type of FSW defect under all conditions. PAUT and other ultrasonic methods can be effective for many volumetric and root-related flaws, while radiographic methods are useful for certain volumetric defects. Tightly contacting defects such as kissing bonds can be particularly difficult to detect. For this reason, NDT is often combined with destructive testing during process development and qualification to establish a reliable inspection strategy.
A: There is no single optimal parameter set for preventing cavities in all aluminum FSW applications. Spindle speed, traverse speed, axial force, plunge depth, tool geometry, alloy, material thickness, and joint configuration all influence heat generation and material flow. A suitable process window should therefore be established through welding trials and validated by inspection and mechanical testing appropriate to the application.
