Wormhole defects in friction stir welding (FSW) are internal, tunnel-like voids that typically form when plasticized material does not flow and consolidate properly behind the rotating tool. Common causes include insufficient heat input, excessive travel speed, unsuitable rotation speed, inadequate tool penetration, incorrect tool geometry, poor forging conditions, and joint fit-up problems.
This guide explains how FSW wormholes form, how rotation speed, travel speed, axial force, tool design, and material conditions affect them, and how to diagnose, detect, and prevent wormhole defects in aluminum friction stir welding.
FSW wormhole defects usually indicate that the material behind the tool pin has not been sufficiently plasticized, transported, or consolidated to form a sound joint.
The most common causes include:
Possible Cause | How It Promotes Wormholes | Initial Troubleshooting Direction |
|---|---|---|
Insufficient heat input | Material does not plasticize or flow adequately | Increase rotation speed or reduce travel speed |
Travel speed too high | Reduces heating and stirring time per unit length | Reduce travel speed |
Unsuitable rotation speed | Produces an unstable thermal and material-flow condition | Adjust together with travel speed |
Incorrect pin length or penetration | Insufficient stirring through the joint thickness | Check pin length and plunge depth |
Poor tool geometry | Material is not transported effectively around the pin | Review shoulder and pin design |
Insufficient forging action | Plasticized material is not fully consolidated behind the tool | Check axial force and shoulder contact |
Poor joint fit-up | Gaps or misalignment disturb material flow | Improve alignment and clamping |
Unstable process conditions | Changes heat, force, or tool position during welding | Monitor and stabilize process parameters |
A wormhole should therefore not be treated as a rotation-speed problem alone. Effective troubleshooting requires checking heat input, material flow, tool penetration, forging conditions, and joint setup together.
A wormhole defect in friction stir welding is an elongated internal void or tunnel that forms within the stirred region of the weld. Unlike obvious surface defects, wormholes can remain hidden beneath an apparently acceptable weld surface.
These defects generally develop when plasticized material fails to flow completely around the FSW tool and consolidate behind the advancing pin. As the tool continues traveling along the joint, the unfilled region may extend in the welding direction, producing a tunnel-like discontinuity.
During a stable friction stir welding process, the rotating tool generates heat, softens the surrounding material, transports it around the pin, and consolidates it behind the tool.
Wormholes can form when this sequence becomes unstable:
Insufficient plasticization → Poor material flow → Incomplete cavity filling → Internal void formation
Several conditions can interrupt this process, including insufficient heat input, excessive travel speed, incorrect tool penetration, unsuitable pin geometry, poor shoulder contact, or inadequate joint fit-up.
The presence of a wormhole therefore often indicates a material-flow or consolidation problem, rather than a single incorrect welding parameter.
Wormholes should be distinguished from other discontinuities because different defects may require different corrective actions.
Defect | Typical Characteristic | Common Process Concern |
|---|---|---|
Wormhole / tunnel defect | Elongated internal cavity along the weld | Poor material flow or consolidation |
Internal void | Localized unfilled region | Insufficient flow, heat, or forging |
Surface groove | Visible longitudinal depression | Tool position, material flow, or shoulder contact |
Excessive flash | Material expelled from the weld zone | Excessive heat, plunge, or forging action |
Lack of penetration | Incomplete joining through the required depth | Pin length, plunge depth, or process conditions |
Because wormholes are internal, visual inspection alone may not detect them. Cross-sectional examination or suitable non-destructive testing may be required to confirm their presence and determine their size and location.
Wormhole defects usually occur when plasticized material cannot flow smoothly around the FSW tool or consolidate completely behind it. The problem may result from incorrect welding parameters, unsuitable tool geometry, insufficient penetration, or unstable joint conditions.
When heat input is too low, the aluminum may not soften enough for stable material flow around the tool pin. This can leave unfilled regions behind the tool and eventually form tunnel-like wormholes.
Insufficient heat input is commonly associated with:
Rotation speed that is too low for the application
Travel speed that is too high
An unsuitable combination of rotation and travel speed
The solution is not simply to increase rotation speed. Rotation and travel speed should be adjusted together to achieve sufficient plasticization without causing overheating or excessive flash.
Even when sufficient heat is generated, wormholes can still occur if material is not transported effectively around the pin and consolidated behind the tool.
Poor material flow may result from:
Unsuitable pin profile or dimensions
Incorrect shoulder design
Inadequate tool penetration
Improper tool tilt or plunge depth
Unstable welding parameters
In these cases, changing rotation speed alone may not eliminate the defect.
Pin length and plunge depth directly affect how much material is stirred through the joint thickness. If the tool does not penetrate deeply enough, insufficient material movement near the bottom of the weld can create internal voids or tunnel defects.
Before increasing axial force, verify that the pin length, plunge depth, and tool position are appropriate for the workpiece thickness and joint design.
Axial force helps maintain contact between the tool shoulder and workpiece while supporting consolidation of plasticized material.
Too little force can result in poor shoulder contact and insufficient consolidation. Excessive force, however, may cause material expulsion, thinning, excessive flash, or increased tool load.
The goal is to maintain enough force for stable contact and material consolidation rather than simply applying the highest possible force.
Wormholes are not always caused by FSW parameters. Gaps, misalignment, inconsistent workpiece thickness, or insufficient clamping can disturb material flow and create internal voids.
Before changing welding parameters, check:
Joint gap and alignment
Workpiece positioning
Clamping stability
Thickness consistency
Tool position relative to the joint
Correcting the joint setup may eliminate the defect without significantly changing the welding parameters.
Tool rotation speed and travel speed work together to control heat generation, material plasticization, and flow during friction stir welding. An unsuitable combination can create a low-heat-input welding condition in which the material does not flow sufficiently around the tool, increasing the risk of wormhole defects.
For a broader overview of how rotation speed, travel speed, and axial force are balanced, see our guide to friction stir welding parameters for aluminum.
If the rotation speed is too low for the selected material, thickness, tool, and travel speed, insufficient frictional heat may be generated.
Possible results include:
Poor material plasticization
Unstable material flow around the pin
Internal voids or tunnel defects
Irregular weld surface
Increasing rotation speed may improve plasticization, but it should be adjusted gradually and evaluated together with travel speed.
Excessive travel speed reduces the interaction time between the rotating tool and the material. This can reduce heat input per unit length and leave insufficient time for material to flow and consolidate behind the tool.
If wormholes appear under a relatively cold welding condition, reducing travel speed may help restore stable material flow.
More heat does not always mean a better weld. Excessive rotation speed or very low travel speed can produce an overly hot process condition, potentially leading to excessive flash, thinning, surface deformation, or unstable material flow.
The objective is therefore to establish a stable rotation-speed and travel-speed window, rather than simply maximizing heat input.
Process Condition | Rotation Speed | Travel Speed | What to Check |
|---|---|---|---|
Insufficient plasticization | Increase gradually | Reduce if necessary | Material flow and weld temperature |
Wormhole under cold conditions | Increase if too low | Reduce if too high | Confirm penetration first |
Excessive flash | Reduce if excessive | Increase if too slow | Plunge depth and axial force |
Overheating | Reduce | Increase | Surface condition and thermal input |
Stable weld | Maintain | Maintain | Validate through inspection |
Important: If changing rotation speed and travel speed does not eliminate the wormhole, check tool penetration, pin geometry, axial force, joint fit-up, and clamping rather than continuing to increase heat input.
Wormhole defects are not always caused by incorrect rotation or travel speed. Even with suitable heat input, an FSW tool with inappropriate geometry or insufficient penetration may fail to move and consolidate enough material behind the tool.

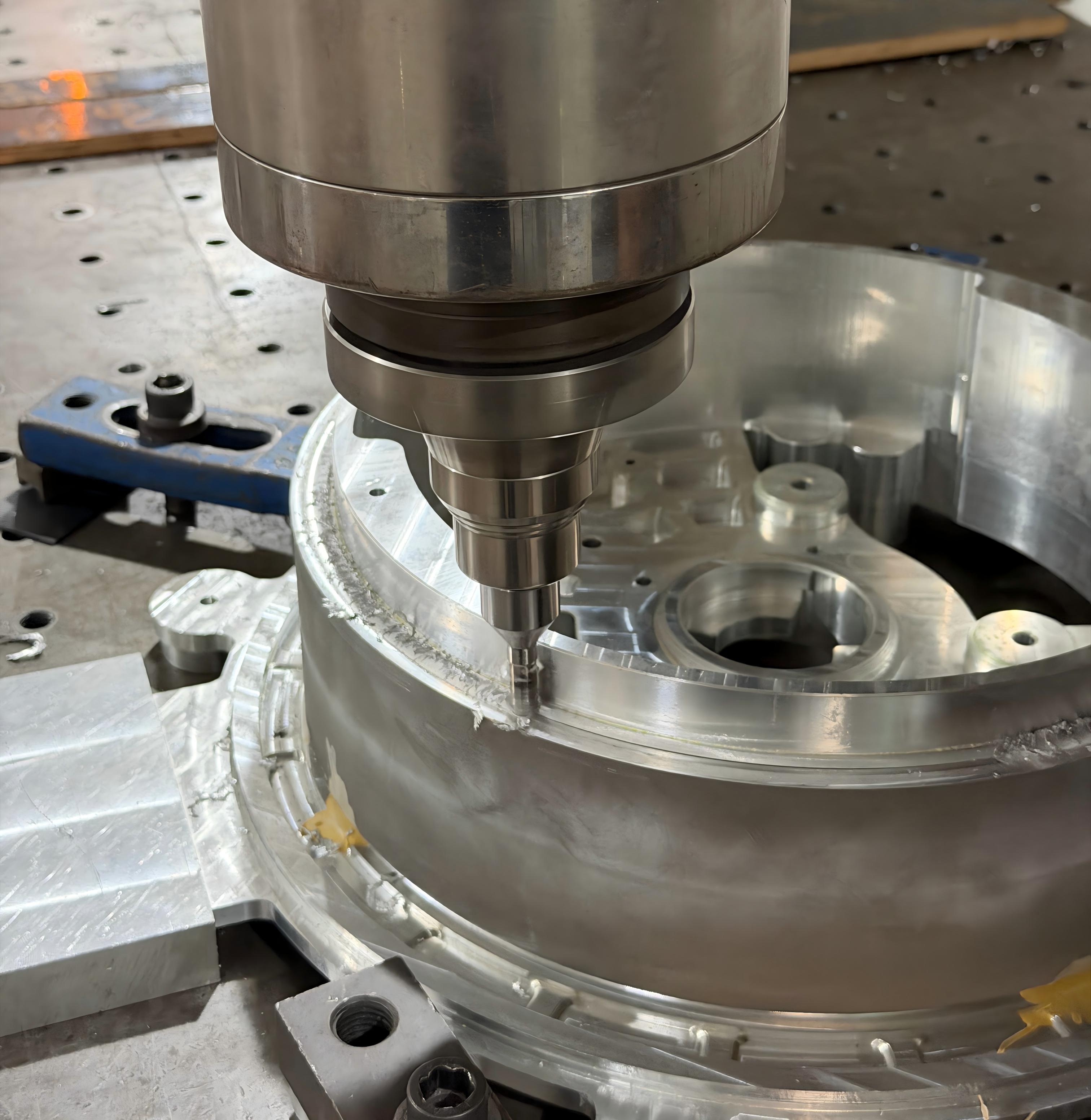

The pin must penetrate deeply enough to stir material through the required joint thickness. If the pin is too short or the plunge depth is insufficient, material near the bottom of the joint may not be adequately stirred.
This can lead to:
Wormhole or tunnel defects
Internal voids near the weld root
Incomplete penetration
Poor bonding through the joint thickness
If wormholes repeatedly appear near the lower part of the weld, check pin length and plunge depth before increasing rotation speed or axial force.
The pin profile controls how plasticized aluminum moves around the rotating tool. Threaded, tapered, or other profiled pins can influence vertical and horizontal material flow differently.
An unsuitable pin design may create unstable flow or leave unfilled regions behind the tool, even when the welding temperature appears acceptable.
Tool geometry should therefore be selected according to the aluminum alloy, material thickness, joint configuration, and required penetration.
The tool shoulder contributes to frictional heating and helps contain and consolidate plasticized material.
Poor shoulder contact or an unsuitable shoulder design can disturb heat generation and material consolidation, increasing the risk of internal defects.
When troubleshooting wormholes, check:
Shoulder diameter and profile
Pin length and profile
Plunge depth
Tool tilt angle
Tool position relative to the joint
Key Point: If parameter adjustments do not remove the wormhole, investigate the tool and penetration conditions instead of continuously increasing heat input.
Even with suitable FSW parameters and tool geometry, wormholes can still form when material properties, joint preparation, or workpiece positioning disrupt stable material flow.
Different aluminum alloys respond differently to frictional heating and plastic deformation. Changes in alloy, temper, or thickness can alter the amount of heat and force required to maintain stable material flow.
A parameter set that produces a sound weld on one aluminum alloy or thickness may therefore create insufficient plasticization or unstable flow on another.
Whenever the material or thickness changes, the FSW parameter window should be revalidated.
Poor joint fit-up can create spaces that the plasticized material cannot completely fill during welding.
Common problems include:
Excessive gaps between workpieces
Misaligned joint edges
Inconsistent material thickness
Incorrect tool position relative to the joint
For butt joints, maintaining consistent edge alignment and joint gaps is especially important for stable material consolidation.
Joint configuration also changes how material flows around the FSW tool.
In butt joints, wormholes may be associated with poor fit-up, insufficient penetration, or unstable material flow near the weld root.
In lap joints, the overlapping interface introduces additional material-flow and bonding considerations. Tool penetration and interface positioning should be carefully controlled to achieve adequate stirring through the required joining region.
The workpieces must remain securely positioned while the rotating tool applies downward and lateral forces.
Insufficient or inconsistent clamping can allow movement, change tool penetration, or disturb shoulder contact during welding.
Before changing process parameters, verify:
Joint alignment and gap
Workpiece thickness
Tool position
Fixture rigidity
Clamping consistency
Troubleshooting Tip: If wormholes appear intermittently while the same welding parameters are being used, inspect joint fit-up, clamping, and tool positioning for process variation before changing rotation or travel speed.
When a wormhole defect is detected, avoid changing multiple welding parameters at the same time. First identify where the defect occurs and whether it is associated with insufficient heat, poor penetration, unstable material flow, or joint setup.
Observed Problem | Possible Cause | What to Check First | Recommended Adjustment |
|---|---|---|---|
Wormhole with signs of insufficient plasticization | Heat input too low | Rotation and travel speed | Increase rotation or reduce travel speed gradually |
Wormhole near the weld root | Insufficient penetration | Pin length and plunge depth | Correct tool penetration before increasing force |
Wormhole along the weld center | Unstable material flow | Pin geometry and process parameters | Optimize tool design and rotation/travel balance |
Wormhole with poor shoulder contact | Insufficient consolidation | Axial force and plunge depth | Improve shoulder contact and forging conditions |
Wormhole occurs intermittently | Unstable setup or process | Clamping, joint gap, tool position | Stabilize fixture and joint conditions |
Wormhole after changing material thickness | Existing parameters no longer suitable | Tool dimensions and parameter window | Revalidate parameters for the new thickness |
Wormhole remains after increasing heat input | Cause may not be thermal | Tool geometry, penetration and fit-up | Stop increasing heat and inspect mechanical factors |
For faster root-cause identification, check the process in this order:
1. Confirm the defect location
Determine whether the wormhole occurs near the surface, weld center, or root.
2. Check joint fit-up and clamping
Verify alignment, joint gap, workpiece stability, and tool position.
3. Check tool penetration
Confirm pin length, plunge depth, shoulder contact, and tool tilt.
4. Evaluate rotation and travel speed
If the weld shows insufficient plasticization, gradually increase rotation speed or reduce travel speed.
5. Check axial force and material consolidation
Make sure sufficient force is applied to maintain stable shoulder contact without causing excessive flash or thinning.
6. Inspect tool geometry
If the defect persists, evaluate whether the shoulder and pin design provide adequate material flow for the alloy, thickness, and joint configuration.
7. Validate the corrected parameter window
Perform additional test welds and inspect them to confirm that the wormhole has been eliminated without introducing other defects.
Key Rule: Change one major process variable at a time whenever possible. This makes it easier to identify the actual cause of the wormhole instead of masking one defect by creating another.
Because wormholes are usually internal defects, a weld may appear acceptable on the surface while still containing elongated voids beneath it. Visual inspection alone is therefore not sufficient for reliable wormhole detection.
Inspection Method | Applicability to Wormholes | Main Use |
|---|---|---|
Visual Inspection | Limited | Identifies surface grooves, flash, and other visible abnormalities |
Ultrasonic Testing (UT) | Applicable | Can detect internal volumetric discontinuities when an appropriate inspection technique is used |
Phased Array Ultrasonic Testing (PAUT) | Applicable | Supports defect localization and imaging with suitable probe configuration and scanning |
Radiographic Testing (RT) | Applicable | Can reveal internal voids and tunnel-like volumetric discontinuities |
Metallographic Examination | Direct confirmation | Confirms defect shape, location, and weld cross-section |
Dye Penetrant Testing | Limited | Detects surface-breaking defects rather than fully internal wormholes |
Visual inspection should be used as an initial quality check for surface abnormalities such as grooves, excessive flash, or irregular weld appearance.
However, because wormholes can remain completely below the surface, a visually acceptable weld does not confirm that the joint is free from internal defects.
Ultrasonic Testing (UT) and Phased Array Ultrasonic Testing (PAUT) can be used to identify internal discontinuities without cutting the welded component.
Radiographic Testing (RT) can also reveal internal voids and help identify the location and extent of tunnel-like defects.
The appropriate NDT method depends on the component geometry, material thickness, inspection requirements, and applicable quality standards.
During process development and parameter validation, cross-sectional examination provides a direct way to confirm whether wormholes or other internal defects are present.
Metallographic inspection can also help determine whether the defect is associated with poor penetration, unstable material flow, or another process condition.
Important: Surface appearance should not be used as the only acceptance criterion when internal wormhole defects are a concern.
Preventing wormhole defects in production requires more than finding a successful rotation speed or travel speed during a single test weld. The entire FSW process should remain within a validated operating window with consistent tooling, joint preparation, clamping, and machine control.
Instead of relying on one fixed parameter set, establish an acceptable operating range for the specific aluminum alloy, thickness, joint design, and FSW tool.
The validated process should define key variables such as:
Tool rotation speed
Travel speed
Axial force
Plunge depth
Tool tilt
Tool position
Test welds and inspection results should be used to confirm that the selected parameter window consistently produces sound joints without wormholes or other unacceptable defects.
Changes in joint gap, alignment, workpiece position, or fixture rigidity can affect material flow even when the welding parameters remain unchanged.
For repeatable production:
Maintain consistent joint fit-up
Use stable and repeatable clamping
Control workpiece positioning
Verify material thickness
Keep the welding path correctly aligned with the joint
Modern FSW equipment can monitor process conditions during welding and help identify deviations before they result in repeated defects.
Useful variables may include:
Actual rotation speed
Travel speed
Axial force
Spindle load or torque
Tool position and plunge depth
Process temperature
Unexpected changes in these values can indicate unstable material flow, tool wear, fixture movement, or other conditions that may increase wormhole risk.
Tool wear can gradually change pin geometry, penetration behavior, and material flow.
Regularly inspect the shoulder and pin for wear, damage, or dimensional changes. When a tool is replaced or its geometry changes significantly, verify the welding process again before returning to full production.
A stable surface appearance does not guarantee that internal wormholes are absent. Periodic NDT or cross-sectional inspection can help confirm that the validated process remains under control.
Inspection frequency should be determined according to component requirements, production volume, process stability, and applicable quality standards.
Best Practice: Treat wormhole prevention as a process-control problem. Stable parameters, consistent tooling, reliable clamping, process monitoring, and periodic inspection work together to maintain repeatable FSW quality.
Wormhole defects in friction stir welding are primarily associated with unstable material flow and incomplete consolidation behind the FSW tool. Insufficient heat input, excessive travel speed, incorrect tool penetration, unsuitable tool geometry, poor joint fit-up, and unstable process conditions can all contribute to their formation.
Effective prevention requires identifying the actual root cause rather than simply increasing rotation speed or heat input. By optimizing FSW parameters, verifying tool penetration and joint setup, monitoring critical process variables, and using appropriate inspection methods, manufacturers can reduce wormhole defects and maintain more consistent weld quality.
Zhihui Welding provides friction stir welding equipment, tooling, and process solutions for aluminum welding applications, helping manufacturers develop stable and repeatable FSW processes.
A wormhole defect is an elongated internal void or tunnel that forms within the friction stir weld. It usually occurs when plasticized material does not flow or consolidate completely behind the FSW tool.
Common causes include insufficient heat input, excessive travel speed, unsuitable rotation speed, incorrect tool penetration, poor tool geometry, inadequate shoulder contact, joint gaps, and unstable clamping or positioning.
Start by identifying whether the defect is related to insufficient heat, poor penetration, unstable material flow, or joint setup. Depending on the cause, corrective actions may include adjusting rotation or travel speed, correcting plunge depth, changing tool geometry, improving axial force control, or fixing joint fit-up and clamping.
Yes. If rotation speed is too low for the material, thickness, tool, and travel speed, insufficient heat and plasticization may increase the risk of wormholes. However, rotation speed should be adjusted together with other process variables rather than treated as the only cause.
Yes. Excessive travel speed can reduce heat input and stirring time per unit length, resulting in insufficient material plasticization and consolidation. Reducing travel speed may help when the weld shows signs of a cold process condition.
Yes. A pin that is too short or insufficient plunge depth can prevent adequate stirring near the bottom of the joint, resulting in internal voids, lack of penetration, or wormhole defects.
Because wormholes are usually internal, visual inspection alone may not detect them. Ultrasonic testing, phased array ultrasonic testing, radiographic testing, and cross-sectional examination can be used depending on the component and inspection requirements.
Use a validated FSW parameter window, maintain consistent joint fit-up and clamping, control tool penetration, monitor critical process variables, inspect tool condition, and periodically verify weld quality using appropriate inspection methods.
