In the ever-evolving world of metalworking and fabrication, one technique stands out for its precision, strength, and minimal environmental impact—friction stir welding (FSW). This innovative method has transformed how industries join metals, particularly in fields like aerospace, automotive, shipbuilding, and electronics. Unlike traditional welding methods that rely on high heat to melt metals, friction stir welding works in the solid state. It stirs and forges materials together using frictional heat and pressure, producing cleaner, stronger, and more consistent welds.
If you're wondering how to friction stir weld, this comprehensive guide will walk you through the entire process step by step. We'll cover the principles behind the method, required tools and materials, setup techniques, and best practices to achieve high-quality results. Whether you're a student, engineer, or manufacturer, understanding how friction stir welding works is the first step toward leveraging its full potential.
Friction stir welding is a solid-state joining process that uses a rotating cylindrical tool to generate frictional heat between two pieces of material—typically metals—positioned side by side. This heat softens the materials, allowing the rotating tool to “stir” the materials together at the joint line. As the tool moves forward, the softened metal is forged together under pressure and cools to form a high-strength weld.
The most unique feature of FSW is that it occurs without melting the base materials. This prevents many of the problems associated with traditional welding, such as warping, cracking, and porosity.
Before learning how to perform friction stir welding, it's essential to understand the basic components involved in the process:
Friction stir welding is most commonly used to join non-ferrous metals like aluminum, magnesium, and copper, although it is also applicable to steel and titanium with the right equipment. The materials must be clamped firmly side by side to form a butt or lap joint.
The FSW tool is made of a tough, wear-resistant material and consists of two main parts:
The Shoulder: This wide, flat part generates surface friction and helps forge the metal.
The Pin (or Probe): A cylindrical or tapered projection that penetrates the joint and stirs the softened material.
FSW can be performed using a dedicated friction stir welding machine, a modified milling machine, or CNC equipment. The machine controls the tool’s rotation, downward force, and traversing motion along the joint line.
Let’s break down the process into manageable steps.
As with any welding technique, proper preparation is critical for success. The materials must be:
Clean: Remove dirt, grease, paint, or oxide layers from the surfaces to be joined.
Flat and aligned: Both workpieces must be aligned edge-to-edge with a tight fit. Uneven surfaces can cause inconsistent welds or tool breakage.
Firmly clamped: Use robust fixtures and backing plates to hold the materials in place. Movement during welding can ruin the joint.
Good preparation reduces defects, improves heat flow, and ensures the tool engages the material correctly.
The shape and size of the tool are critical to the quality of the weld. The tool should be harder than the base material and capable of withstanding the forces and temperatures generated during welding.
Tool materials often include:
H13 tool steel for aluminum alloys
Tungsten-based alloys for harder metals
Polycrystalline cubic boron nitride (PCBN) for steel and titanium
The pin length should match the thickness of the materials, and the shoulder diameter should be 2–3 times the pin diameter to ensure proper forging.
Configure the welding machine based on your materials and joint design. The key parameters include:
Tool Rotation Speed: Typically 300 to 3000 RPM. Higher speeds generate more frictional heat.
Traverse Speed: The speed at which the tool moves along the joint—usually between 50 to 500 mm/min.
Plunge Depth and Force: The tool must be plunged into the material until the shoulder contacts the surface with a consistent downward force.
Tilt Angle: A slight backward tilt (1° to 3°) improves material flow and consolidation.
These parameters are fine-tuned through trial runs and depend on the material type, thickness, and desired weld quality.
Start the tool rotation before it contacts the workpiece. Then, plunge the rotating pin into the joint line slowly until the shoulder is flush with the material surface. Hold the tool in place for a short time (the dwell period) to allow the material to soften thoroughly. This ensures smooth material flow during the welding phase.
Once the material is softened and the tool is in position, start moving the tool forward along the joint. This is known as the traverse motion.
As the tool moves:
The pin stirs and mixes the softened material.
The shoulder maintains downward pressure and helps forge the material.
The mixed material cools and solidifies behind the tool, forming a strong weld.
A successful traverse produces a clean, uniform weld with no surface cracks, voids, or flash.
When the tool reaches the end of the weld, stop the forward motion but keep the rotation active for a moment. Then slowly withdraw the tool. This helps reduce the size of the exit hole and allows the weld to cool evenly.
After welding, visually inspect the joint for signs of defects. Look for:
Surface irregularities
Excess flash (extruded material)
Voids or pinholes
For critical applications, you can use advanced methods like ultrasonic testing, radiography, or metallurgical examination.
Some welds may require minor finishing—like removing flash or smoothing the weld surface—especially in visible or functional parts.
Learning how to friction stir weld also involves recognizing potential issues and troubleshooting them effectively.
Inadequate Heat Generation: Leads to incomplete mixing and weak welds. Adjust the tool speed or apply more downward force.
Excessive Heat: Can cause flash formation or degrade material properties. Reduce rotation speed or traverse more quickly.
Improper Tool Selection: The wrong tool shape or size can lead to defects like wormholes, tunnels, or voids.
Poor Clamping: If the workpieces are not securely held, the weld can be misaligned or inconsistent.
Proper training, planning, and practice are key to mastering the process.
Now that you understand how to friction stir weld, let’s briefly explore where this technique is used.
Aerospace: Joining lightweight aluminum components for fuselages and wings.

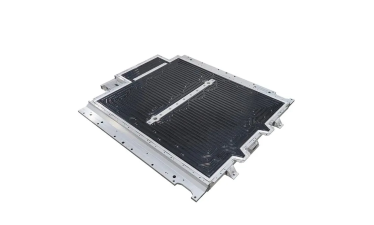

Automotive: Battery enclosures, crash structures, and vehicle frames.
Marine: Hulls, decks, and corrosion-resistant joints.
Electronics: Heat sinks, enclosures, and copper connections.
Rail: Panels, doors, and structural assemblies.
Energy: Fuel cells, wind turbine components, and solar panels.
Its ability to join dissimilar metals and difficult alloys makes FSW highly valuable in advanced engineering.
Stronger Welds: Excellent mechanical properties, often stronger than base metal.
Low Distortion: Minimal warping or shrinkage due to lower temperatures.
No Filler Material Needed: The process uses only the base materials.
Eco-Friendly: No fumes, gases, or arc radiation.
Cost-Effective: Fewer defects and post-processing steps.
These benefits are especially useful in applications requiring long-lasting, high-performance welds.
If your work involves joining lightweight metals, ensuring strong structural performance, or producing high-quality components with minimal defects, then friction stir welding is definitely worth considering.
While the process requires specific tools and setup, its long-term benefits far outweigh the learning curve. Industries around the world are investing in FSW to improve efficiency, reduce waste, and deliver superior product performance.
Friction stir welding has redefined what is possible in metal joining. It eliminates many of the challenges of traditional welding by offering a cleaner, safer, and more reliable solution. Whether you're working with aluminum, magnesium, or advanced alloys, understanding how to friction stir weld gives you access to a world of design possibilities.
From the initial setup and tool selection to machine parameters and post-weld inspection, every step of the process requires attention to detail and a good understanding of the materials involved. Once mastered, FSW becomes a powerful tool in any modern workshop or factory.
For those seeking professional-grade equipment, technical support, or guidance in adopting this innovative welding method, Dongguan Zhihui Welding Technology Co., Ltd. is a trusted industry partner. With their advanced expertise in friction stir welding and commitment to precision manufacturing solutions, they offer the tools and knowledge needed to bring your welding projects to life with confidence and quality.
