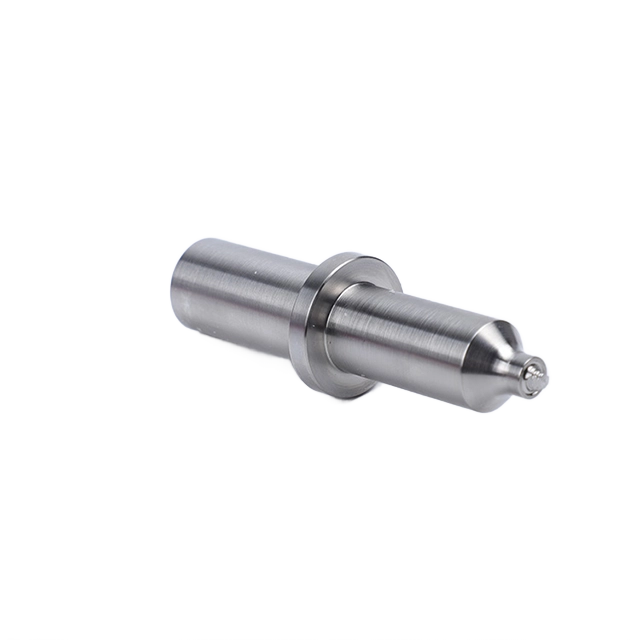

Friction Stir Welding Tool Head

Precision Tool Heads for Friction Stir Welding


Our friction stir welding (FSW) tool heads are made from superalloy materials, engineered for exceptional wear resistance and high-temperature stability. They are designed to support a customizable welding depth from 1–20mm, meeting diverse requirements for joining aluminum, copper, magnesium, and other lightweight alloys.


Why Choose Our FSW Tool Heads?


  • Durability – Superalloy construction ensures longer service life compared to standard steel heads.

  • Precision – Consistent welding quality with minimized tool wear.

  • Flexibility – Fully customizable tool geometry for flat plates, hollow housings, and complex structures.

  • Broad Applications – Suitable for battery trays, EV motor housings, liquid cooling plates, and more.


Applications


Our tool heads are widely applied in:


  • New Energy Vehicles (NEVs) – Battery trays, motor housings, busbars.

  • Electronics & Cooling Systems – Liquid cooling plates, heat exchangers.

  • Lightweight Structural Parts – Aluminum and magnesium alloy castings.



CTA:


Contact us today to discuss your custom FSW tool head requireme
