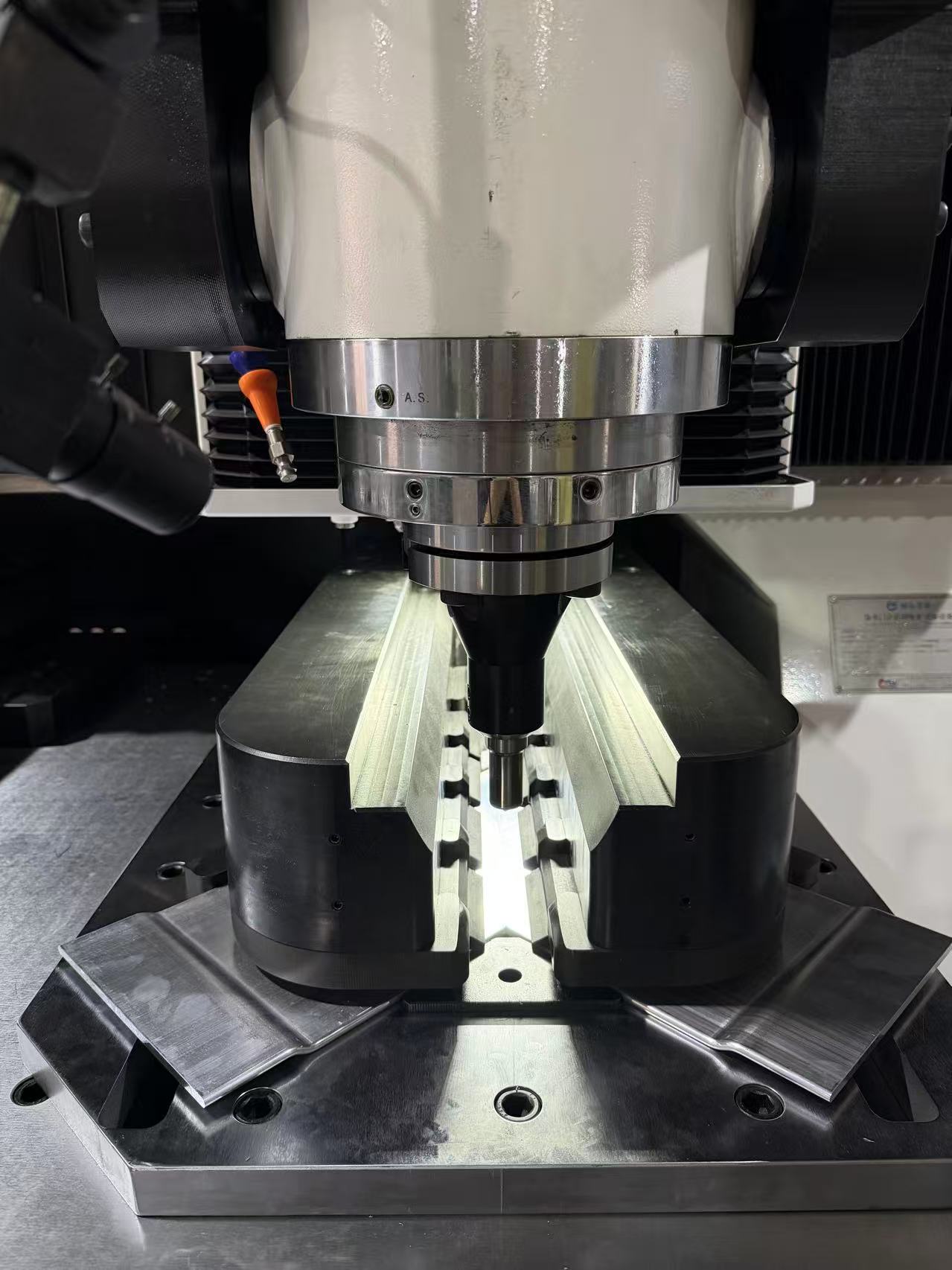

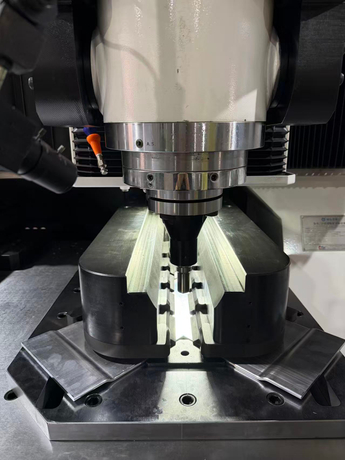

FSW Joint Design Guide: Butt Joint vs Lap Joint

Choosing between a butt joint and a lap joint in friction stir welding (FSW) depends on how the parts are arranged, material thickness, load direction, joint accessibility, and required weld performance. Butt joints place two workpieces edge-to-edge, while lap joints overlap one workpiece over another, creating different requirements for tool penetration, material flow, and joint design.

This guide compares FSW butt joints vs. lap joints, including their structure, advantages, limitations, design considerations, common defects, and typical applications to help you select the right joint configuration for your welding project.

Butt Joint vs. Lap Joint in FSW: Quick Comparison

The main difference between an FSW butt joint and lap joint is how the workpieces are positioned. Butt joints place the parts edge-to-edge in the same plane, while lap joints overlap the parts. This difference affects joint thickness, tool penetration, load transfer, material flow, and weld inspection.

Which FSW Joint Should You Choose?

Choose a butt joint when a flat joint profile, efficient material use, and direct load transfer across aligned components are important.

Choose a lap joint when overlapping assembly is practical, the components have different thicknesses, or the product design already requires an overlap.

However, joint geometry alone should not determine the final choice. Material combination, thickness, loading direction, available welding access, tool design, inspection requirements, and production conditions should also be considered.

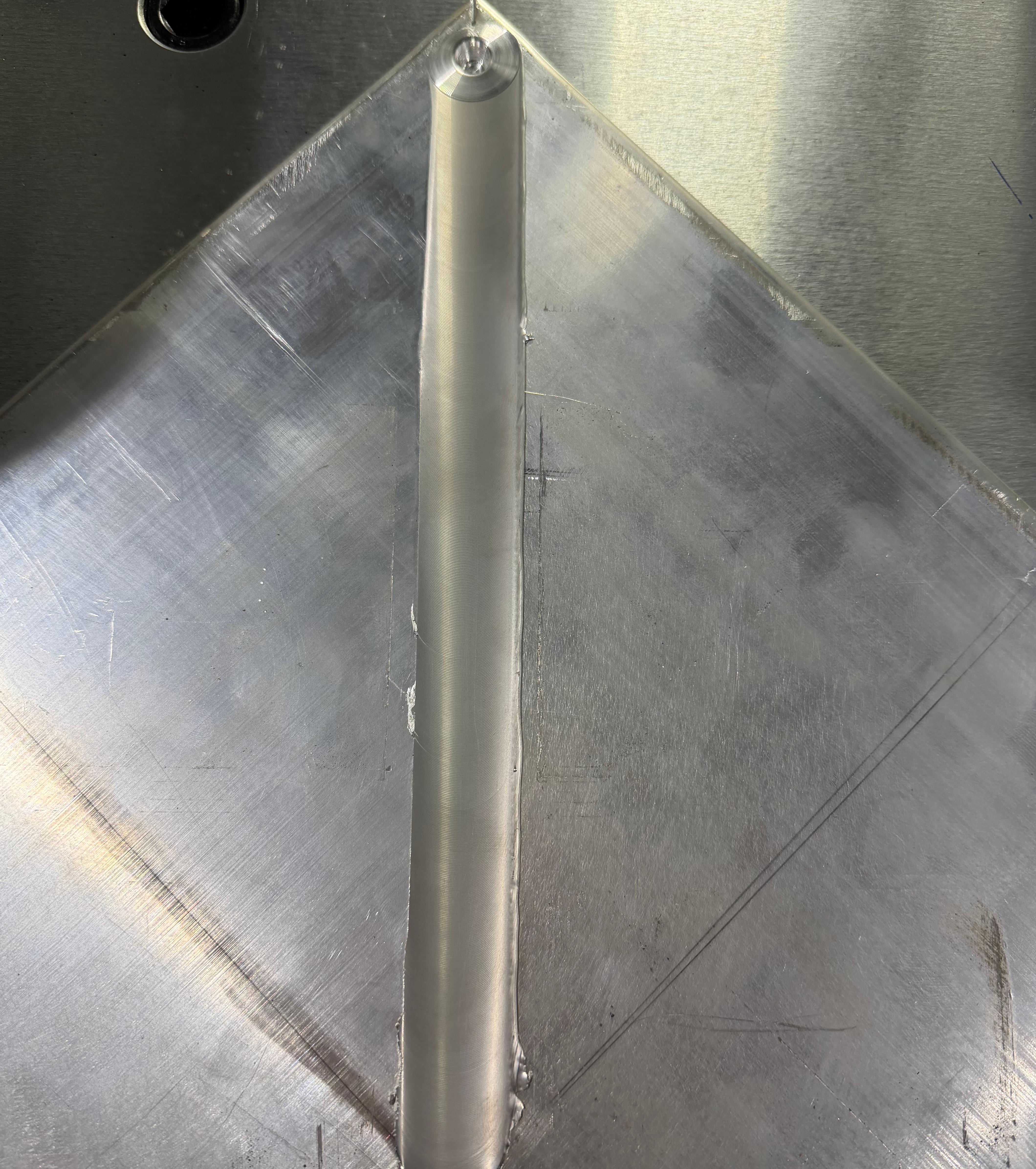

What Is an FSW Butt Joint?

An FSW butt joint joins two workpieces positioned edge-to-edge in the same plane. The friction stir welding tool travels along the joint line, plasticizing and stirring material from both sides to create a solid-state joint.

Butt joints are commonly used when the components have similar thicknesses and the finished assembly requires a relatively flat joint profile.

Advantages of FSW Butt Joints

• Efficient material use because no overlap is required

• Relatively flat and clean joint profile

• Direct load transfer across the joint

• Suitable for long, continuous weld seams

• Well suited to plates, panels, and extruded aluminum components

Key Butt Joint Design Requirements

A high-quality butt joint depends heavily on joint preparation and tool positioning. Important design factors include:

• Accurate edge alignment

• Controlled joint gap

• Consistent material thickness

• Correct pin length

• Sufficient plunge depth

• Stable backing and clamping

• Accurate tool tracking along the joint line

The tool pin must provide sufficient stirring through the required joint thickness without excessively contacting the backing structure.

Common Butt Joint Limitations

Butt joints are relatively sensitive to poor fit-up. Excessive joint gaps, edge misalignment, insufficient tool penetration, or incorrect tool positioning can contribute to:

• Root defects

• Tunnel or wormhole defects

• Incomplete penetration

• Surface grooves

• Localized thinning or excessive flash

For this reason, precise workpiece positioning and consistent process control are particularly important when designing an FSW butt joint.

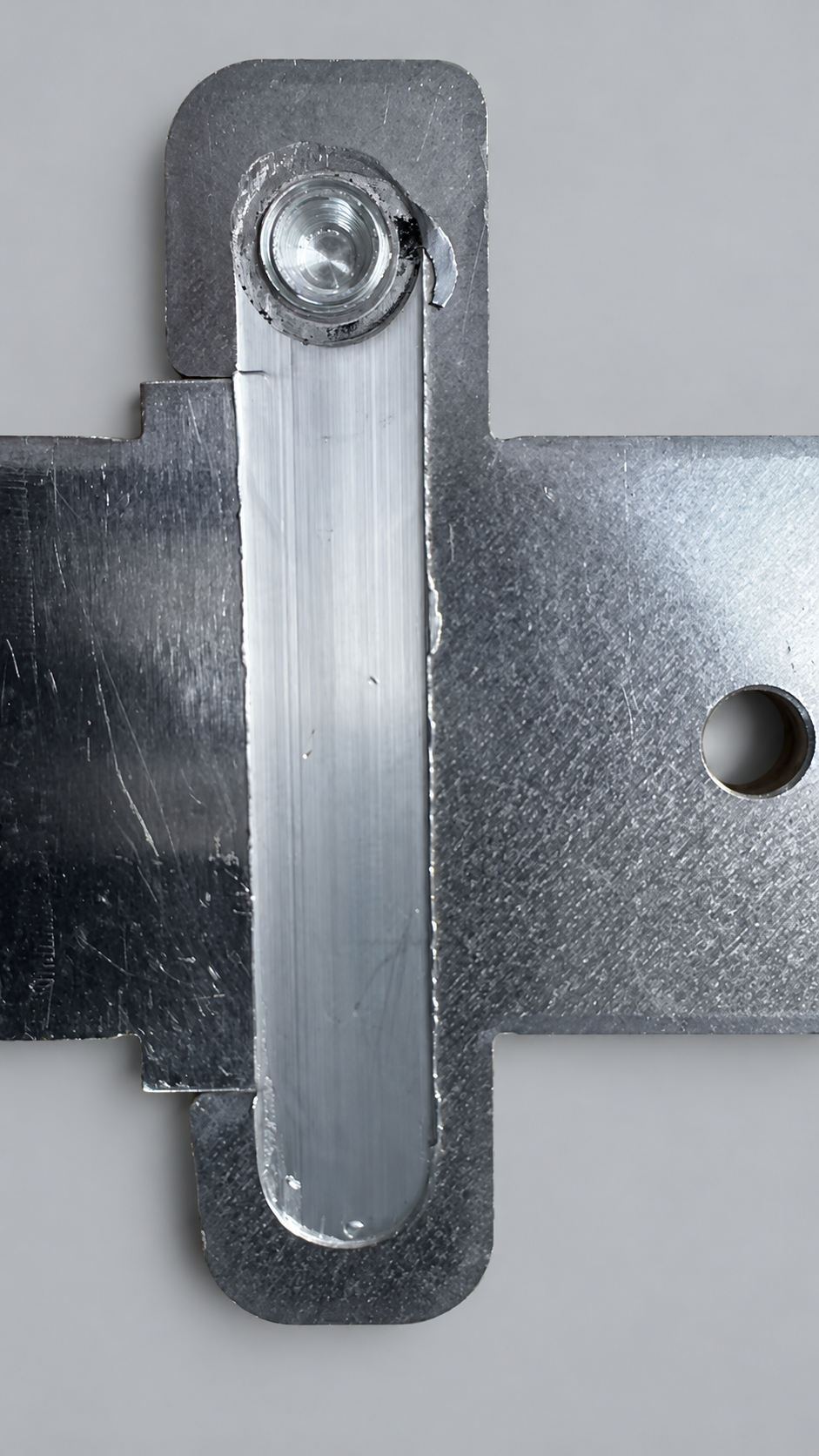

What Is an FSW Lap Joint?

An FSW lap joint joins two overlapping workpieces by plunging the rotating tool through the upper plate and stirring material across the interface between the upper and lower plates.

Unlike a butt joint, the quality of a lap joint depends not only on material flow around the tool but also on how effectively the original interface between the overlapping plates is disrupted and bonded.

Advantages of FSW Lap Joints

• Suitable for overlapping sheet and plate assemblies

• Can accommodate components with different thicknesses

• Does not require precise edge-to-edge alignment

• Useful when the product design already includes an overlap

• Suitable for many sheet, panel, enclosure, and structural assemblies

Key Lap Joint Design Requirements

The overlap region and tool position must be carefully designed to ensure sufficient stirring across the joining interface.

Important factors include:

• Overlap length

• Upper and lower plate thickness

• Tool pin length

• Plunge depth

• Tool position relative to the interface

• Joint surface condition

• Stable clamping and backing support

The pin must penetrate sufficiently into the joining region to create effective material flow without causing excessive thinning or damage to the lower workpiece.

Common Lap Joint Limitations

Because lap joints contain an internal interface between the overlapping plates, their defect mechanisms can be more complex than those of butt joints.

Potential problems include:

• Hooking defects

• Kissing bonds

• Internal voids or tunnel defects

• Insufficient interface bonding

• Excessive thinning

• Flash formation

• Interface deformation

Some interface defects may not be clearly visible from the weld surface, making tool penetration control and appropriate weld inspection especially important.

Key Point: A successful FSW lap joint requires more than sufficient heat input. Tool geometry, penetration depth, overlap design, and material flow across the interface must work together to create a reliable joint.

Key Differences Between Butt and Lap Joints in FSW

Although both joint types use the same friction stir welding principle, their different geometries affect load transfer, material flow, tool penetration, and overall joint design.

Load Transfer

In a butt joint, the two workpieces are aligned in the same plane, allowing loads to transfer directly across the welded section. This configuration is often preferred when a flat structural connection is required.

In a lap joint, loads are transferred through the overlapping region. The offset between the two workpieces can introduce additional bending or stress concentration depending on the component geometry and loading direction.

Material Flow

Butt joints require the tool to mix and consolidate material from both sides of the joint line. Poor fit-up or insufficient material flow can result in root defects, tunnels, or internal voids.

Lap joints have a more complex material-flow path because the tool must also disrupt and stir the original interface between the overlapping plates. This makes interface position and tool penetration especially important.

Tool Penetration

For butt joints, the pin should provide sufficient stirring through the required joint thickness while maintaining appropriate clearance from the backing structure.

For lap joints, the pin must penetrate through the upper workpiece and sufficiently into the joining region of the lower workpiece. Too little penetration may leave an inadequately bonded interface, while excessive penetration can increase thinning or interface deformation.

Joint Efficiency and Material Use

Butt joints generally use less material because the workpieces do not need to overlap. They can also provide a relatively flat finished profile.

Lap joints require additional material for the overlap but may simplify assembly when components already need to overlap or when different material thicknesses are being joined.

The better joint design therefore depends on the complete application rather than one joint type being universally stronger or more reliable than the other.

How to Choose Between an FSW Butt Joint and Lap Joint

Choosing between a butt joint and lap joint for friction stir welding should be based on component geometry, material thickness, loading conditions, manufacturing requirements, and available welding access.

The following table provides a practical starting point for joint selection:

Questions to Ask Before Selecting the Joint

Before finalizing an FSW joint design, consider:

• How are the components positioned in the final assembly?

• Are the workpieces the same or different thicknesses?

• What direction will the primary load act?

• Is a flat finished surface required?

• Is additional overlap acceptable?

• Can the joint be accurately aligned and clamped?

• Is there sufficient access for the FSW tool and backing support?

• How will the finished weld be inspected?

• What defects are most critical for the application?

There is no universally better FSW joint type. The best choice is the joint configuration that provides suitable load transfer, tool access, material flow, manufacturability, and inspection capability for the specific component.

FSW Joint Design Factors to Consider

After selecting a butt or lap joint, the joint geometry and workpiece setup should be designed to support stable tool access, material flow, penetration, and load transfer.

Material and Thickness

Material type and thickness directly affect FSW joint design.

For butt joints, workpieces with similar thicknesses are generally easier to align and weld with consistent through-thickness penetration.

Lap joints can accommodate different thicknesses, but the upper and lower plate thicknesses must be considered when selecting tool geometry and penetration depth.

If the alloy, temper, or thickness changes, the welding process should be revalidated rather than assuming the same joint and process settings will produce identical results.

Joint Gap and Fit-Up

Butt joints require accurate edge alignment and controlled joint gaps. Excessive gaps or misalignment can disturb material flow and contribute to root defects, internal voids, or inconsistent weld quality.

For lap joints, the focus shifts from edge gap to maintaining a consistent overlap and stable interface between the two workpieces.

Overlap Design for Lap Joints

The overlap should provide enough joining area for the expected loading conditions while allowing proper tool access and clamping.

Important considerations include:

• Overlap length

• Upper and lower plate thickness

• Position of the weld within the overlap

• Distance from the weld to the component edge

• Available space for the tool shoulder

• Required load-transfer path

The optimum overlap should be determined according to component geometry, loading requirements, material properties, and the validated welding process.

Tool Access and Welding Path

The FSW machine must have sufficient access to position the tool correctly along the entire joint.

Check for:

• Clearance around the tool shoulder

• Uninterrupted welding path

• Machine access at the start and end of the weld

• Component features that may interfere with the tool

• Run-on and run-off requirements where applicable

Tool accessibility should be considered during component design rather than after the joint geometry has already been finalized.

Backing and Clamping

FSW generates significant downward and lateral forces, so the joint requires rigid backing and stable fixturing.

The fixture should:

• Support the joint beneath the welding area

• Prevent workpiece separation or movement

• Maintain consistent joint alignment

• Resist welding forces without excessive deflection

• Provide repeatable positioning between production parts

Insufficient backing or clamping can change penetration and material flow even when the programmed welding parameters remain unchanged.

For more detail on backing support, clamping, and fixture rigidity, see our guide to aluminum FSW fixture design.

Design for Inspection

Inspection requirements should also influence joint design.

Butt joints may provide relatively straightforward access for surface inspection and certain internal inspection methods. Lap joints can be more challenging because critical defects may occur at the internal overlap interface.

Consider how the joint will be inspected before finalizing its geometry, especially for components where internal defects or interface bonding are critical.

Design Tip: A good FSW joint should be designed not only for strength, but also for tool access, stable clamping, repeatable welding, and practical quality inspection.

Common Defects in FSW Butt and Lap Joints

Butt and lap joints can develop different defects because their joint geometry, tool penetration, and material-flow conditions are different. Identifying the defect type and location is important before adjusting FSW parameters.

Common Butt Joint Defects

For butt joints, the weld root is particularly important. If the pin does not provide sufficient stirring through the required thickness, defects may remain near the bottom of the joint.

When root defects or wormhole defects are detected, check pin length, plunge depth, joint fit-up, and tool position before simply increasing heat input.

Common Lap Joint Defects

Lap joints require particular attention to the original interface between the overlapping workpieces.

A hooking defect occurs when the original interface is displaced upward into the stirred region, changing the effective load-bearing geometry of the joint.

A kissing bond is more difficult to identify because the interface may appear to be in close contact while still lacking adequate bonding.

Tool penetration, pin geometry, overlap design, and material flow should therefore be evaluated together when troubleshooting lap joint defects.

Avoid Parameter-Only Troubleshooting

Not every FSW joint defect can be corrected by changing rotation speed or travel speed.

If a defect remains after reasonable parameter adjustments, inspect:

• Tool geometry

• Pin length

• Plunge depth

• Joint fit-up

• Tool position

• Clamping and backing

• Joint configuration

Key Point: Defect location often provides an important clue to the root cause. Root defects in butt joints and interface defects in lap joints should first trigger a review of penetration and joint geometry before major parameter changes are made.

Tool and Process Considerations for Butt and Lap Joints

Butt and lap joints use the same basic FSW process, but their different geometries require different approaches to tool penetration, material flow, and process control. Welding parameters should therefore be validated for the specific joint rather than transferred directly from one joint type to another.

Tool Selection

For a butt joint, the tool should provide sufficient stirring through the required joint thickness while maintaining stable material flow along both sides of the joint line.

For a lap joint, the tool must also promote effective material movement across the interface between the upper and lower workpieces.

Selecting the right friction stir welding tool is therefore an important part of FSW joint design. Key tool variables include:

• Pin length and diameter

• Pin profile

• Shoulder diameter and profile

• Tool material

• Tool position relative to the joint

Lap joints may require particular attention to pin geometry because material flow around the overlapping interface can influence hooking, interface bonding, and effective joint thickness.

Plunge Depth and Tool Penetration

Tool penetration should be matched to the joint geometry.

Butt Joint:
The pin should provide sufficient stirring toward the weld root without excessive penetration into the backing structure.

Lap Joint:
The pin must pass through the upper workpiece and provide sufficient stirring across the joining interface into the lower workpiece.

Insufficient penetration can leave root or interface defects, while excessive penetration may increase thinning, flash, or interface deformation.

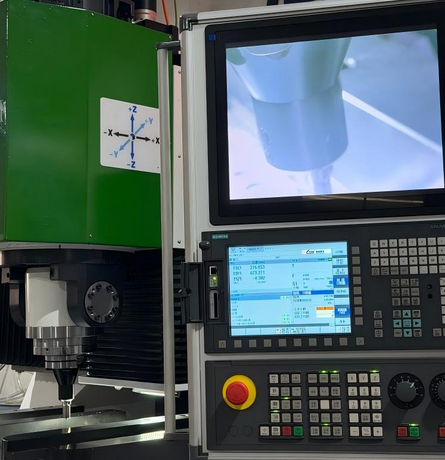

Rotation Speed and Travel Speed

Rotation speed and travel speed work together to control heat generation and material flow in both joint types.

Rather than using a fixed parameter rule for butt or lap joints, adjust these variables according to:

• Aluminum alloy

• Material thickness

• Joint geometry

• Tool design

• Required penetration

• Weld quality requirements

A parameter set developed for a butt joint should not automatically be used for a lap joint, even when the same aluminum alloy and thickness are involved.

For a broader discussion of process-window development, see our guide to friction stir welding parameters for aluminum.

Axial Force and Shoulder Contact

Axial force helps maintain tool contact and consolidate plasticized material.

For butt joints, stable shoulder contact supports consistent material consolidation along the joint line.

For lap joints, axial force must also be coordinated with penetration depth to avoid excessive thinning or deformation of the overlapping workpieces.

More force does not necessarily produce a stronger joint. The appropriate force should be established together with plunge depth, tool geometry, and the other welding parameters.

Tool Tilt and Position

Tool tilt can influence material consolidation and flow behind the tool, but the appropriate angle depends on the FSW machine, tool design, material, thickness, and joint configuration.

Tool position is especially important in lap joints because small changes in penetration or interface location can affect how the original overlap interface moves through the stirred region.

For both joint types, use the validated tool position and process window rather than relying on a universal tilt angle or penetration setting.

Key Point: Joint geometry changes how the FSW tool interacts with the material. Tool design, penetration, rotation speed, travel speed, axial force, and tool position should therefore be optimized as a complete process rather than as independent settings.

How to Inspect and Test FSW Butt and Lap Joints

Inspection and testing methods should be selected according to the joint geometry, expected defect type, loading conditions, and quality requirements. Butt joints typically require particular attention to root integrity and internal voids, while lap joints require additional evaluation of the overlapping interface.

FSW Joint Inspection and Testing Methods

Inspecting FSW Butt Joints

For butt joints, inspection should focus on:

• Weld root integrity

• Full required penetration

• Internal voids or wormholes

• Surface grooves and flash

• Joint alignment

• Localized thinning

Cross-sectional examination is particularly useful during process development because it can confirm whether the tool provides adequate stirring through the required joint thickness.

Inspecting FSW Lap Joints

Lap joint inspection should evaluate both the stirred region and the original overlap interface.

Important features include:

• Interface bonding

• Hooking

• Kissing bonds

• Internal voids

• Penetration into the lower workpiece

• Effective load-bearing joint geometry

• Excessive thinning or deformation

Because some lap-joint interface defects can be difficult to detect, the inspection method should be validated for the specific joint geometry and defect types of concern.

Mechanical Testing

Testing should reflect how the joint will be loaded in the actual application.

Butt joints are commonly evaluated using tensile testing when direct load transfer across the weld is important.

Lap joints are often evaluated using lap-shear testing because the overlapping configuration creates a different load-transfer path.

Fatigue testing may be required for either joint type when the component will experience repeated or cyclic loading.

Key Point: Do not select an inspection or mechanical test simply because it is commonly used for FSW. The method should match the joint geometry, expected defect type, loading condition, and acceptance requirements.

Typical Applications of FSW Butt and Lap Joints

Both butt and lap joints are widely used in aluminum friction stir welding, but the preferred joint configuration depends more on component geometry, load transfer, material thickness, and manufacturing requirements than on the industry alone.

Typical Butt Joint Applications

FSW butt joints are commonly considered for components that require a continuous edge-to-edge connection and a relatively flat welded profile.

Typical applications include:

• Aluminum panels and large plates

• Extruded aluminum profiles

• EV battery trays and enclosures

• Heat sinks and cooling plates

• Transportation structures

• Aerospace and marine panels

• Long structural seams

Butt joints are particularly useful when minimizing additional material and maintaining a flat component profile are important design requirements.

Typical Lap Joint Applications

FSW lap joints are commonly used when the component design already includes overlapping sheets, plates, or structural sections.

Typical applications include:

• Overlapping aluminum panels

• Sheet metal assemblies

• Battery and electrical enclosures

• Automotive structural components

• Transportation panels

• Components with different material thicknesses

• Aluminum assemblies requiring an overlapping connection

Lap joints can simplify assembly in some component designs, but tool penetration and interface quality require careful control.

Application Does Not Determine Joint Type Alone

The same industry or component may use different FSW joint types depending on its design.

For example, an EV battery enclosure may contain butt joints for long panel seams and lap joints where overlapping structural members are required.

The final joint selection should therefore be based on:

Component Geometry → Load Path → Material & Thickness → Tool Access → Manufacturing → Inspection Requirements

rather than selecting a butt or lap joint based only on the application industry.

Conclusion

Choosing between an FSW butt joint and lap joint depends on component geometry, material thickness, load transfer, tool access, manufacturing requirements, and inspection needs.

Butt joints are well suited to edge-to-edge connections where a relatively flat profile and efficient material use are important. Lap joints are useful for overlapping assemblies and components with different thicknesses, but require careful control of the joining interface, tool penetration, and material flow.

Neither joint type is universally better. A reliable FSW joint design should combine the right joint configuration with suitable tool geometry, stable clamping, validated welding parameters, and appropriate inspection methods.

Zhihui Welding provides friction stir welding equipment, tooling, and process solutions for aluminum components, helping manufacturers develop stable and repeatable FSW processes for different joint configurations.

FAQ About FSW Butt and Lap Joints

What is the difference between a butt joint and a lap joint in FSW?

A butt joint places two workpieces edge-to-edge in the same plane, while a lap joint overlaps one workpiece over another. This difference affects load transfer, tool penetration, material flow, joint thickness, and the types of defects that may occur during friction stir welding.

Which is stronger, an FSW butt joint or lap joint?

Neither joint type is always stronger. Joint strength depends on material properties, thickness, joint geometry, tool design, welding parameters, penetration, defect control, and loading direction. The better joint is the one designed and validated for the specific application.

How do I choose between a butt joint and lap joint for FSW?

Choose based on component geometry, material thickness, load direction, available welding access, surface requirements, manufacturing method, and inspection needs. Butt joints are commonly used for flat edge-to-edge connections, while lap joints are suitable for components designed with an overlapping section.

How much overlap is needed for an FSW lap joint?

There is no universal overlap length for every FSW lap joint. The required overlap depends on material thickness, expected loading, weld position, tool geometry, edge distance, component design, and required joint performance. The final overlap should be validated through welding trials and mechanical testing.

How deep should the FSW tool penetrate?

For a butt joint, the tool should provide sufficient stirring through the required joint thickness without excessive contact with the backing structure. For a lap joint, the pin must penetrate through the upper workpiece and sufficiently stir the joining region across the interface with the lower workpiece. The correct penetration depth depends on the joint geometry and tool design.

What are the most common defects in FSW butt joints?

Common butt joint defects include root defects, wormholes or tunnel defects, incomplete penetration, internal voids, surface grooves, and excessive flash. These defects may be related to joint fit-up, tool position, penetration, material flow, or unsuitable welding parameters.

What are the most common defects in FSW lap joints?

Common lap joint defects include hooking, kissing bonds, interface voids, insufficient interface bonding, excessive thinning, and flash. Tool penetration, pin geometry, overlap design, and material flow are particularly important for controlling these defects.

Can FSW join materials with different thicknesses?

Yes. Friction stir welding can be used for components with different thicknesses, particularly in lap-joint configurations. However, thickness differences affect tool selection, penetration, material flow, clamping, and load transfer, so the joint and welding parameters should be validated for the specific application.
