Fixture Design for Aluminum Friction Stir Welding

Aluminum friction stir welding generates significant downward, lateral, and travel forces that must be controlled throughout the welding process. A well-designed fixture keeps the workpieces accurately positioned, supports the weld region, prevents separation or movement, and provides sufficient clearance for the FSW tool.

For aluminum components, fixture design must also account for material softness, thermal expansion, part geometry, joint configuration, and production repeatability. Poor clamping or insufficient backing support can contribute to misalignment, excessive distortion, inconsistent penetration, and other weld quality problems.

This guide explains the key principles of friction stir welding fixture design for aluminum, including clamping, backing plates, rigidity, thermal expansion, tool clearance, fixture types, common design mistakes, and practical validation methods.

Why Fixture Design Matters in Aluminum FSW

In friction stir welding, the rotating tool applies significant downward and lateral forces to the workpiece. The fixture must keep the aluminum components securely positioned while supporting the weld region throughout the entire welding cycle.

Unlike conventional fusion welding, FSW also requires the fixture to work together with the backing structure, tool path, plunge depth, and joint geometry. Even when the welding parameters are correctly programmed, insufficient fixture rigidity or poor clamping can cause part movement and inconsistent weld quality.

Maintain Joint Alignment

Accurate positioning is essential for keeping the FSW tool centered on the intended joint line.

The fixture should prevent:

• Joint misalignment

• Workpiece separation

• Lateral movement

• Vertical lifting

• Part shifting during tool travel

Precision locating pins, stops, or machined locating surfaces can improve positioning repeatability between production parts.

Resist FSW Process Forces

An FSW fixture must resist the forces generated during tool plunge, dwell, and travel without excessive movement or deflection.

The fixture structure, clamps, backing plate, and machine table should therefore function as a complete load-bearing system.

Insufficient rigidity can change the relative position between the tool and workpiece, affecting penetration and material flow.

Support the Weld Region

The area beneath the weld requires stable support to resist downward tool force and prevent excessive workpiece deflection.

This is particularly important when welding:

• Thin aluminum sheets

• Large panels

• Long weld seams

• Battery trays and enclosures

• Components with unsupported sections

The backing structure should provide sufficient support along the required weld path while maintaining appropriate clearance for the FSW process.

Control Part Movement Without Deformation

Aluminum is relatively soft, so simply increasing clamping force is not always the correct solution.

Excessive clamping can deform thin components or damage critical surfaces, while insufficient clamping may allow movement during welding.

A good fixture therefore balances:

Rigidity + Support + Clamping Force + Part Protection + Repeatability

Key Point: An effective FSW fixture does more than hold the workpiece. It creates a stable mechanical system that maintains joint position, supports the weld region, and keeps the relationship between the tool and workpiece consistent throughout the welding process.

Key Requirements for an FSW Fixture

A reliable friction stir welding fixture must maintain the position of the aluminum workpiece while resisting process forces and supporting consistent tool penetration. The following requirements should be considered together during fixture design.

Fixture Rigidity

The fixture should be stiff enough to resist welding loads without excessive deflection. Rigidity should be evaluated across the complete load path from the workpiece and clamps to the fixture base and machine table.

Clamping Stability

Clamps should prevent lifting, sliding, and separation while avoiding unnecessary deformation of the aluminum component.

Clamp location can be as important as clamp force. Applying a large force far from the weld region may not provide sufficient local restraint where it is actually needed.

Backing Support

The backing structure should provide stable support beneath the required weld region and help maintain the intended relationship between the tool and workpiece.

Its design should consider workpiece thickness, weld path, joint configuration, process forces, and fixture stiffness.

Accurate Location

Locating features establish the position of the component before clamping.

A fixture should use clearly defined reference surfaces, stops, pins, or other locating features so that each workpiece is positioned consistently relative to the FSW tool path.

Tool Clearance

Fixture components must not interfere with the rotating shoulder, pin, spindle, or required machine movement.

Clearance should be checked along the complete weld path, including:

• Tool plunge location

• Weld start position

• Full welding path

• Weld end position

• Tool retraction

• Nearby clamps and fixture components

Thermal Expansion

Aluminum expands as temperature increases during welding. The fixture should maintain alignment while allowing controlled thermal movement where necessary.

Over-constraining the component can introduce unwanted deformation or dimensional variation.

Repeatability

For production applications, a successful fixture must reproduce the same workpiece position and support conditions from one welding cycle to the next.

Repeatability depends on stable locating surfaces, consistent clamping, fixture stiffness, and proper maintenance of wear components.

Design Principle: Do not optimize rigidity, clamping, backing, or thermal expansion independently. A successful FSW fixture balances all of these requirements as one integrated system.

How to Design Clamping for Aluminum FSW

Clamping is one of the most important parts of aluminum FSW fixture design. The clamping system must prevent lifting, sliding, joint separation, and misalignment while avoiding excessive deformation of the aluminum workpiece.

Effective clamping depends not only on how much force is applied, but also on where the force is applied and how it is distributed along the weld path.

Position Clamps Near the Weld Region

Clamps should provide sufficient restraint close to the joint without interfering with the FSW tool or shoulder.

When clamps are positioned too far from the weld line, the workpiece may still lift or separate locally under tool forces even if the total clamping force is high.

Clamp positioning should therefore consider:

• Joint location

• Tool shoulder diameter

• Welding direction

• Workpiece thickness

• Unsupported areas

• Tool and spindle clearance

• Part loading and unloading

The complete tool path should be checked for interference before the clamp layout is finalized.

Apply Enough Force Without Over-Clamping

Clamping force must be sufficient to prevent movement during tool plunge and travel, but excessive force can deform thin or soft aluminum components.

The required force depends on the specific workpiece, fixture stiffness, joint geometry, process forces, and support conditions.

Rather than relying on a universal clamping-force value, validate the clamp setting during fixture and welding trials.

Distribute Clamping Along Long Welds

For long seams, relying on only one or two concentrated clamping points can allow local lifting or movement between clamps.

Multiple clamping points can provide more consistent restraint along the weld path.

The appropriate clamp spacing depends on:

• Workpiece stiffness

• Material thickness

• Weld length

• Joint configuration

• Backing support

• Process forces

• Allowable distortion

Clamp spacing should therefore be determined from the actual component and validated during trial welding rather than treated as a fixed FSW design value.

Protect Thin Aluminum Components

Thin sheets, finished surfaces, and lightweight aluminum structures may require additional protection from localized clamp pressure.

Possible approaches include:

• Larger clamp contact areas

• Soft or replaceable contact pads

• Distributed clamping points

• Adjustable clamping force

• Compliant clamping elements

These methods can reduce surface marking and localized deformation while maintaining adequate restraint.

Choose the Right Clamping Method

Different production requirements may use different clamping systems.

The clamping method should be selected according to part geometry, production volume, required holding force, automation level, and cycle-time requirements.

Coordinate Clamping with Locating

Locators establish the workpiece position; clamps maintain that position during welding.

Clamps should not be used to force an incorrectly positioned component against the locating system. Doing so can introduce deformation, internal stress, or inconsistent positioning between parts.

A good fixture therefore follows a simple sequence:

Locate → Support → Clamp → Weld

Key Point: More clamping force does not automatically produce a better FSW joint. Effective clamping comes from the correct combination of clamp position, force distribution, backing support, fixture rigidity, and tool clearance.

Backing Plate Design for Friction Stir Welding

The backing plate is a critical part of an FSW fixture because it supports the workpiece directly beneath or near the weld region. During friction stir welding, it must resist the downward tool force, limit workpiece deflection, and help maintain consistent tool penetration.

A backing plate should be designed as part of the complete fixture system rather than treated as a simple support surface.

What Does an FSW Backing Plate Do?

The main functions of a backing plate include:

• Supporting the workpiece beneath the weld

• Resisting downward tool forces

• Limiting local bending and deflection

• Helping maintain consistent plunge and penetration conditions

• Supporting joint alignment

• Providing a stable surface throughout the weld path

Insufficient backing support can allow the aluminum workpiece to deflect during welding, changing the relative position between the tool and joint.

Backing Plate vs. Fixture Base

The backing plate and fixture base perform related but different functions.

The backing plate provides local support close to the weld region, while the fixture base supports the overall fixture structure and transfers process loads to the machine table.

A rigid fixture base cannot fully compensate for poor local support directly beneath the weld.

For this reason, both local backing stiffness and overall fixture rigidity should be considered during design.

Backing Plate Stiffness

The backing structure should resist the expected FSW loads without excessive elastic deflection.

Required stiffness depends on factors such as:

• Aluminum workpiece thickness

• Joint configuration

• Tool geometry

• Plunge and axial loading

• Unsupported span

• Weld length

• Fixture structure

• Machine rigidity

For large panels or thin aluminum components, additional support may be required to prevent local deflection along the welding path.

Backing Surface and Workpiece Contact

Consistent contact between the workpiece and backing surface helps maintain stable support during welding.

The backing surface should therefore be:

• Sufficiently flat for the required part tolerance

• Clean and free from debris

• Resistant to excessive wear

• Compatible with the workpiece surface requirements

• Properly supported beneath the weld region

Irregular contact or gaps beneath the workpiece can reduce local support and contribute to inconsistent welding conditions.

Backing Plate Material

Backing plate material should be selected according to mechanical stiffness, wear resistance, thermal behavior, service life, and production requirements.

Common engineering considerations include:

• Strength and stiffness

• Resistance to wear or indentation

• Thermal conductivity

• Coefficient of thermal expansion

• Machinability

• Cost and replaceability

There is no single backing plate material that is best for every aluminum FSW application.

Support the Complete Weld Path

Backing support should be evaluated along the entire weld path, not only at the tool plunge location.

Pay particular attention to:

• Weld start and end regions

• Long unsupported spans

• Changes in component geometry

• Corners or curved weld paths

• Open sections or cavities beneath the joint

• Areas near component edges

For complex parts such as battery trays, enclosures, and hollow extrusions, local backing may require dedicated inserts or shaped support features.

Consider Thermal Behavior

The backing plate can also influence heat transfer away from the weld region.

Changes in backing material, thickness, contact condition, or cooling configuration may change the thermal conditions of the FSW process.

For this reason, replacing or redesigning the backing plate may require the welding process to be revalidated, even when the programmed FSW parameters remain unchanged.

Design for Maintenance and Replacement

In production fixtures, areas exposed to repeated loading, heat, or tool proximity may gradually wear.

Where practical, consider:

• Replaceable backing inserts

• Removable wear plates

• Accessible mounting points

• Repeatable positioning after replacement

• Easy inspection and cleaning

This can simplify maintenance without requiring replacement of the complete fixture.

Key Point: The backing plate is part of the FSW process system. Its stiffness, contact condition, material, geometry, and thermal behavior can all influence workpiece support and welding consistency.

Managing Aluminum Thermal Expansion and Distortion

Aluminum expands as its temperature increases during friction stir welding. Although FSW is a solid-state process, the workpiece still experiences localized heating and thermal gradients that can cause dimensional changes and distortion.

The fixture must therefore balance two requirements: holding the joint securely during welding while allowing controlled thermal movement where necessary.

Avoid Over-Constraining the Workpiece

A fixture that completely restricts thermal movement can introduce unwanted forces into the aluminum component as it heats and expands.

Depending on the part geometry, this may contribute to:

• Local deformation

• Dimensional variation

• Part bowing or warping

• Increased reaction forces at locating points

• Binding against locators

• Difficulty unloading the part after welding

The goal is not to leave the component free to move, but to control where movement is allowed and where accurate positioning must be maintained.

Establish a Clear Locating Strategy

The fixture should define the workpiece position using stable reference points while avoiding unnecessary constraints.

A practical locating strategy may include:

• A primary reference surface

• Fixed locating features for critical dimensions

• Controlled clearance where thermal movement is expected

• Adjustable or compliant elements where appropriate

• Support points that maintain the required joint position

The exact locating method depends on component geometry and tolerance requirements.

Allow Controlled Thermal Movement

For long aluminum components, panels, or assemblies, thermal growth may become more significant along the length of the weld.

Where appropriate, the fixture can use features such as:

• Floating locators

• Slotted locating features

• Adjustable stops

• Compliant clamps

• Spring-loaded elements

• Segmented support structures

These features can allow limited movement in a controlled direction while maintaining the required joint alignment.

Use Clamping to Control, Not Eliminate, Movement

Increasing clamping force is not always an effective way to control thermal distortion.

Excessive restraint can transfer thermal expansion into local deformation, especially in thin aluminum components.

Instead, coordinate:

Locating Strategy + Clamp Position + Backing Support + Fixture Rigidity + Thermal Movement

to keep the joint stable without unnecessarily over-constraining the complete component.

Support Thin and Large Aluminum Parts

Thin sheets and large aluminum panels are more sensitive to local bending and dimensional variation.

Fixture design may require:

• Additional support beneath unsupported areas

• Distributed clamping

• Reduced unsupported spans

• Shaped support surfaces

• Local backing inserts

• Controlled clamp sequencing

Support should be concentrated where it helps maintain the intended weld geometry without unnecessarily restricting thermal movement elsewhere.

Consider Heat Transfer Through the Fixture

The fixture and backing plate can influence heat transfer from the workpiece.

Fixture material, backing contact, component thickness, and optional cooling features can all affect local thermal conditions.

Active cooling channels or heat sinks may be useful in certain applications, but they should not be treated as a universal requirement for aluminum FSW fixtures.

If fixture cooling significantly changes the thermal conditions around the weld, the welding process should be validated with the final fixture configuration.

Check Distortion After Trial Welding

Thermal behavior should be verified through actual welding trials.

After welding, check:

• Joint position

• Overall flatness

• Local deformation

• Critical dimensions

• Part release from the fixture

• Repeatability between welded parts

If distortion is unacceptable, review the complete fixture system rather than changing clamping force alone.

Key Point: Good aluminum FSW fixture design does not attempt to prevent all thermal expansion. It controls thermal movement while maintaining the joint position, backing support, and dimensional requirements that matter to the finished component.

Tool Clearance and Fixture Accessibility

An FSW fixture must provide enough space for the welding tool, spindle, clamps, sensors, and machine motion throughout the complete welding cycle. A fixture that holds the part securely but interferes with tool movement cannot provide a stable or practical welding process.

Tool clearance should therefore be evaluated early in the fixture design rather than after the clamping system has already been finalized.

Check the Complete FSW Tool Envelope

Fixture clearance should be based on the complete tool assembly and machine movement, not only the pin diameter.

When selecting a friction stir welding tool, consider how the pin, shoulder, tool holder, and spindle will interact with nearby fixture components.

Check clearance during:

• Tool approach

• Plunge

• Dwell

• Welding travel

• Direction changes

• Weld completion

• Tool retraction

The required clearance may change when tool geometry or shoulder diameter changes.

Keep Clamps Clear of the Tool Path

Clamps should be positioned close enough to provide effective joint restraint while remaining outside the required tool and spindle envelope.

Pay particular attention to:

• Clamp arms

• Clamp bodies

• Bolts and fasteners

• Locating pins

• Support blocks

• Fixture walls

• Pneumatic or hydraulic components

A clamp may appear clear of the weld line while still interfering with the larger tool shoulder or spindle assembly.

Consider Weld Start and End Positions

Tool access should be checked beyond the main weld seam.

The fixture may need additional space for:

• Initial tool positioning

• Plunge location

• Run-on or run-off areas where required

• End-of-weld positioning

• Tool extraction

Start and end regions can become fixture interference points if clearance is evaluated only along the central weld path.

Design for Complex Weld Paths

Straight welds are generally easier to accommodate, while curved paths, corners, enclosed structures, and three-dimensional components may require more careful fixture design.

For complex paths, verify:

• Tool orientation

• Machine-axis travel

• Spindle clearance

• Clamp interference

• Local backing support

• Accessibility around corners

• Changes in component height or geometry

A digital tool-path and fixture-clearance check can help identify interference before the fixture is manufactured.

Coordinate the Fixture with the FSW Machine

Fixture design should also consider the capabilities and physical limits of the FSW machine.

Important factors include:

• Machine working envelope

• Table size and mounting points

• Axis travel

• Spindle dimensions

• Tool orientation

• Machine rigidity

• Fixture height

• Part loading requirements

A fixture designed independently from the machine may create unnecessary setup limitations or reduce the usable welding area.

Maintain Operator and Automation Access

Accessibility also affects production efficiency.

The fixture should allow practical access for:

• Part loading

• Part unloading

• Clamp operation

• Fixture cleaning

• Backing plate inspection

• Tool replacement

• Part inspection

• Maintenance

For automated production, accessibility should also account for robots, loading systems, sensors, pneumatic or hydraulic lines, and other peripheral equipment.

Validate Clearance Before Manufacturing

Before building the final fixture, perform a clearance review using the actual or modeled:

Workpiece + FSW Tool + Spindle + Clamps + Fixture + Machine Envelope

CAD interference checks are particularly useful for identifying collisions and inaccessible fixture components before machining begins.

Key Point: FSW fixture clearance should be designed around the complete tool and machine motion—not just the visible weld line. Tool geometry, shoulder diameter, spindle size, clamp position, and machine travel must all be considered together.

Types of Fixtures for Aluminum FSW

Different aluminum components and production requirements may require different fixture designs. The right fixture type depends on part geometry, joint configuration, production volume, required rigidity, loading method, and automation level.

FSW Fixture Types at a Glance

Modular FSW Fixtures

Modular fixtures use standardized or adjustable components that can be repositioned for different workpieces or joint geometries.

Typical features may include:

• Adjustable clamps

• Movable locating stops

• Interchangeable support blocks

• Replaceable backing inserts

• Reconfigurable fixture plates

Modular fixtures are useful for prototype development, product families, and production environments where multiple aluminum components are welded on the same FSW machine.

The main challenge is maintaining sufficient rigidity and repeatability after reconfiguration.

Custom FSW Fixtures

Custom fixtures are designed around a specific component, joint geometry, and welding path.

They can provide:

• Dedicated workpiece support

• Optimized clamp positions

• Precise locating features

• Integrated backing support

• Improved tool clearance

• High positioning repeatability

Custom fixtures are often more appropriate when production volume, dimensional requirements, or process forces justify a dedicated solution.

Mechanical Clamping Fixtures

Mechanical clamping is widely applicable because it provides direct and adjustable workpiece restraint.

Depending on the application, the fixture may use:

• Screw clamps

• Toggle clamps

• Cam mechanisms

• Dedicated clamp arms

• Pneumatic or hydraulic actuators

The important design consideration is not simply the clamp mechanism itself, but whether it provides sufficient restraint at the required locations without deforming the aluminum component.

Vacuum Fixtures

Vacuum holding can distribute restraint across a larger surface area and may be useful for certain thin or relatively flat aluminum components.

However, vacuum clamping should not automatically be assumed to provide sufficient restraint for every FSW application.

Its suitability depends on:

• Available sealing area

• Workpiece surface condition

• Component stiffness

• Process forces

• Joint location

• Backing requirements

• Required holding force

Mechanical restraint or additional support may still be required depending on the application.

Hybrid Fixture Systems

Hybrid fixtures combine two or more locating, supporting, or clamping methods.

For example, a fixture may combine:

Mechanical Clamping + Vacuum Holding + Custom Backing Support

to stabilize a large thin panel while providing stronger local restraint near the weld.

Hybrid systems can be useful for irregular geometries, large components, or applications where one holding method cannot satisfy all fixture requirements.

Automated FSW Fixtures

For high-volume production, fixture operation can be integrated with pneumatic, hydraulic, robotic, or other automated systems.

Automated fixtures may include:

• Sequenced clamping

• Part-presence sensors

• Clamp-position detection

• Automated loading and unloading

• Interlocks with the FSW machine

• Process monitoring

The fixture should be designed together with the welding machine and production sequence to avoid unnecessary cycle time or accessibility problems.

How to Choose the Right FSW Fixture Type

Use the production requirement to guide fixture selection:

Prototype or frequent part changes → Modular Fixture

Dedicated high-volume component → Custom Fixture

General-purpose strong restraint → Mechanical Clamping

Thin or large flat surface → Consider Vacuum Holding

Complex geometry or mixed requirements → Hybrid Fixture

High-volume automated production → Automated Fixture

In practice, many production FSW fixtures combine elements from several fixture types rather than fitting into only one category.

Key Point: Fixture type should follow the component and production process. Rigidity, backing support, accurate locating, tool clearance, and repeatability remain important regardless of which fixture architecture is selected.

Step-by-Step FSW Fixture Design Process

A successful aluminum FSW fixture should be designed around the workpiece, joint geometry, welding tool, machine, and production requirements as one complete system.

The following seven-step workflow provides a practical approach to fixture development.

Step 1: Analyze the Workpiece and Joint

Start by defining the component and welding requirements.

Review:

• Aluminum alloy and temper

• Material thickness

• Part dimensions and geometry

• Butt, lap, or other joint configuration

• Weld length and direction

• Dimensional tolerances

• Critical surfaces

• Expected production volume

The joint location should be clearly defined because it determines where backing support, clamps, and tool clearance will be required.

Step 2: Understand the FSW Process Loads

Identify how the welding process will load the workpiece and fixture.

Consider:

• Downward tool force

• Lateral forces

• Welding direction

• Tool plunge location

• Tool travel path

• Workpiece stiffness

• Potential lifting or separation

These conditions help determine the required fixture rigidity, backing support, and clamping strategy.

Step 3: Define the Locating Strategy

Establish how the workpiece will be positioned consistently relative to the FSW tool path.

Select suitable:

• Reference surfaces

• Locating pins

• Stops

• Datum features

• Adjustable locators

• Controlled clearances

The locating system should establish the required position without unnecessarily restricting thermal expansion.

Step 4: Design the Backing and Support System

Provide sufficient support beneath the weld region and other areas where the component may deflect.

Evaluate:

• Backing plate geometry

• Local support beneath the joint

• Unsupported spans

• Part thickness

• Weld start and end regions

• Curved or complex weld paths

• Replaceable backing inserts where appropriate

Backing support should remain stable throughout the complete welding path.

Step 5: Design the Clamping Layout

Position clamps to prevent workpiece lifting, sliding, and joint separation while avoiding excessive deformation.

Determine:

• Clamp locations

• Required holding direction

• Force distribution

• Clamp contact area

• Tool clearance

• Loading and unloading access

• Clamp operating sequence

For long welds or flexible components, use distributed restraint where necessary rather than relying on a small number of concentrated clamping points.

Step 6: Verify Tool, Fixture, and Machine Clearance

Before manufacturing the fixture, check the complete welding motion.

Include:

• FSW pin and shoulder

• Tool holder

• Spindle

• Clamp arms

• Locators

• Fixture walls

• Machine-axis travel

• Tool approach and retraction

• Weld start and end positions

CAD interference checking can help identify collisions before the fixture is built.

Step 7: Build, Trial Weld, and Validate

The final fixture design should be validated under actual welding conditions.

During trial welding, evaluate:

• Part movement

• Joint alignment

• Tool penetration consistency

• Fixture deflection

• Clamp stability

• Workpiece distortion

• Surface condition

• Weld quality

• Part loading and unloading

• Repeatability between welding cycles

If problems occur, identify whether they originate from the fixture, backing, clamping, tool, welding parameters, or workpiece geometry before modifying the design.

Repeat the trial-and-adjustment process until the fixture and FSW process provide stable and repeatable results.

FSW Fixture Design Workflow

Part & Joint Analysis → Process Loads → Locating → Backing Support → Clamping → Clearance Check → Trial & Validation

Key Point: Fixture design should begin with the joint and process requirements, not with the clamp type. Clamps, backing, locators, and fixture structure should all be selected after the required workpiece position and FSW load path are understood.

Common FSW Fixture Design Mistakes

Even with suitable welding parameters and tooling, poor fixture design can lead to part movement, inconsistent penetration, distortion, and repeatability problems. The following mistakes should be checked during fixture development.

Mistake 1: Designing for Rigidity but Ignoring Local Backing

A fixture may have a heavy and rigid base while still allowing the aluminum workpiece to deflect directly beneath the weld.

How to avoid it:
Evaluate the complete load path from the FSW tool through the workpiece and backing plate to the fixture base and machine table.

Mistake 2: Using More Clamping Force to Solve Every Problem

When part movement occurs, simply increasing clamp force may appear to be the easiest solution. However, excessive force can deform thin aluminum parts without correcting poor backing or clamp positioning.

How to avoid it:
Check clamp location, backing support, fixture rigidity, and locating strategy before increasing clamping force.

Mistake 3: Placing Clamps Too Far from the Weld

A clamp can hold the overall component securely while still allowing local lifting near the joint.

How to avoid it:
Place restraint close enough to the weld region to control local movement while maintaining sufficient clearance for the tool shoulder and spindle.

Mistake 4: Over-Constraining Aluminum Thermal Expansion

Restricting the component in every direction can create unwanted reaction forces as the aluminum heats during welding.

How to avoid it:
Use a clear locating strategy with fixed references for critical positioning and controlled movement where thermal expansion must be accommodated.

Mistake 5: Checking Clearance Only at the Weld Line

Fixture designers may verify that clamps do not cross the joint line but overlook interference with the larger tool shoulder, holder, spindle, or machine movement.

How to avoid it:
Check the complete welding sequence:

Approach → Plunge → Weld → End Position → Retract

using the actual or modeled FSW tool and machine envelope.

Mistake 6: Ignoring Weld Start and End Regions

The center of a long weld may be well supported while the start or end region lacks sufficient backing or clamp restraint.

How to avoid it:
Evaluate support, clamping, and accessibility along the complete weld path, including tool entry and exit regions.

Mistake 7: Using Clamps as Locators

Clamps are designed primarily to maintain workpiece position, not to establish the dimensional reference of the component.

Using clamps to push an incorrectly positioned part into place can reduce repeatability and introduce deformation.

How to avoid it:
Follow the fixture sequence:

Locate → Support → Clamp → Weld

and use dedicated locating features to establish the workpiece position.

Mistake 8: Skipping Trial-Weld Validation

A fixture that works correctly in CAD may behave differently when exposed to actual FSW forces, thermal conditions, and repeated production cycles.

How to avoid it:
Conduct trial welds and check:

• Part movement

• Fixture deflection

• Clamp stability

• Joint alignment

• Weld quality

• Post-weld distortion

• Part release

• Cycle-to-cycle repeatability

Use these results to refine the fixture before full production.

Key Point: Many apparent FSW parameter problems are actually fixture problems. Before changing rotation speed, travel speed, or axial force, verify that the workpiece is correctly located, supported, and clamped throughout the weld.

How to Validate an FSW Fixture

An FSW fixture should be validated under actual welding conditions before it is released for production. CAD models and structural calculations can identify potential problems, but trial welding is necessary to confirm how the fixture, workpiece, backing, clamps, and welding process interact.

Fixture validation should cover four stages: before welding, during welding, after welding, and repeatability testing.

Before Welding: Check Setup and Positioning

Before starting the weld, verify that the workpiece can be loaded and positioned consistently.

Check:

• Workpiece location against the defined datums

• Joint alignment with the programmed tool path

• Contact between the workpiece and backing surface

• Clamp position and engagement

• Tool and spindle clearance

• Weld start and end accessibility

• Part loading and unloading

• Fixture component condition

There should be no unintended gaps, interference, or unstable support around the weld region.

During Welding: Monitor Fixture Stability

During trial welding, observe how the fixture and workpiece respond to the FSW process forces.

Check for:

• Workpiece lifting

• Joint separation

• Lateral movement

• Fixture vibration

• Clamp movement

• Local workpiece deflection

• Backing plate movement

• Unexpected fixture deformation

• Tool-to-fixture interference

If movement occurs, identify where the load path is losing stiffness before simply increasing clamping force.

After Welding: Inspect the Part and Fixture

After the weld is complete and the component has cooled sufficiently for evaluation, inspect both the welded part and fixture.

For the workpiece, check:

• Joint position

• Weld surface condition

• Overall flatness

• Local distortion

• Critical dimensions

• Evidence of clamp marking or deformation

• Ease of part removal

For the fixture, check:

• Loose fasteners

• Worn locating surfaces

• Backing plate damage

• Clamp movement

• Permanent deformation

• Surface contamination or aluminum buildup

Unexpected fixture wear or deformation can indicate that loads are not being transferred as intended.

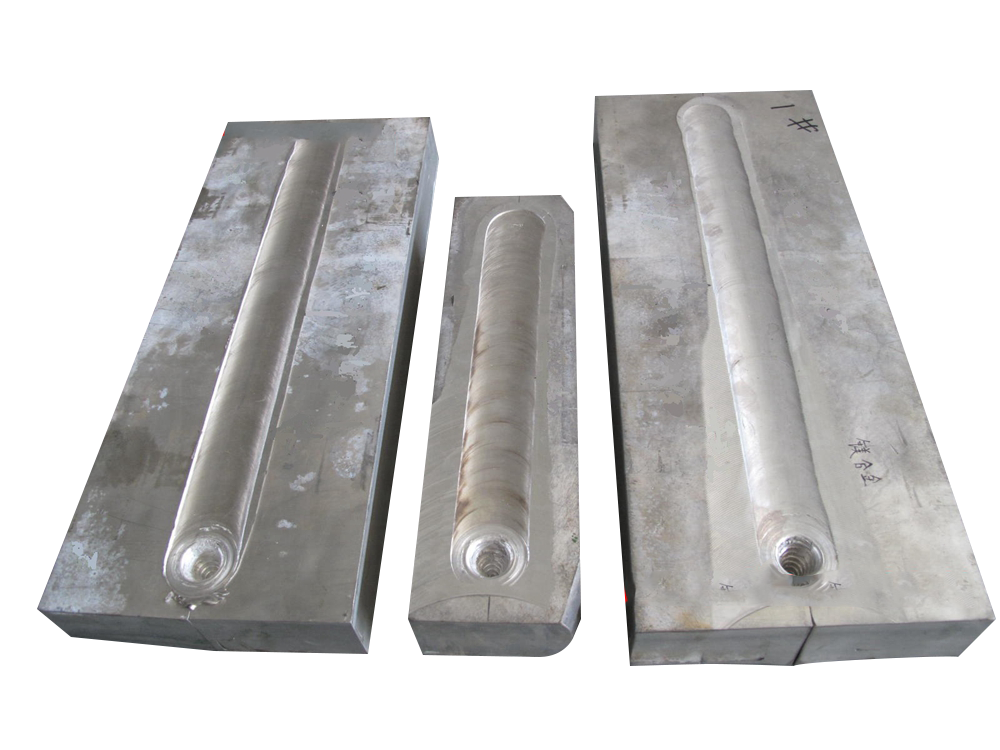

Check Weld Quality

Fixture validation should also include weld inspection because poor workholding may appear as a welding defect.

Depending on the application, evaluate:

• Penetration consistency

• Root condition

• Internal voids or tunnel defects

• Surface grooves

• Excessive flash

• Joint misalignment

• Local thinning

• Other application-specific acceptance criteria

If a defect appears repeatedly in the same location, check the corresponding backing, clamp, locator, and support conditions before changing welding parameters.

Verify Cycle-to-Cycle Repeatability

A fixture should not be considered production-ready after only one successful weld.

Run multiple welding cycles and compare:

• Part position

• Joint alignment

• Clamp engagement

• Weld location

• Critical dimensions

• Post-weld distortion

• Weld quality

Consistent results across repeated cycles provide stronger evidence that the fixture can maintain stable production conditions.

Validate Production Operation

For production fixtures, also evaluate practical operating requirements such as:

• Loading time

• Clamping sequence

• Unloading time

• Operator access

• Automated loading compatibility

• Sensor operation

• Fixture cleaning

• Backing plate replacement

• Tool-change access

• Routine maintenance

A fixture that produces a good weld but is difficult to operate or maintain may still create production problems.

FSW Fixture Validation Checklist

Key Point: A fixture is validated only when it can repeatedly maintain the required part position, support, clamping, tool clearance, and weld quality under actual production conditions.

Fixture Design for Different Aluminum FSW Applications

FSW fixture requirements vary significantly with component geometry, thickness, weld path, and production method. A fixture suitable for a flat aluminum plate may not provide adequate support or accessibility for a battery tray, extrusion, or thin-sheet assembly.

The following examples show how fixture design priorities can change between common aluminum FSW applications.

EV Battery Trays and Enclosures

EV battery trays and aluminum enclosures often include long weld seams, thin walls, internal cavities, extrusions, or multiple joint locations.

Fixture design should consider:

• Continuous backing along critical weld paths

• Local support beneath thin walls or unsupported sections

• Accurate positioning of extrusions and panels

• Distributed clamping along long joints

• Tool clearance around walls, corners, and structural features

• Controlled thermal movement across large assemblies

• Repeatable positioning for multiple weld seams

For components with cavities beneath the joint, dedicated backing inserts or shaped supports may be required to resist downward tool forces.

Aluminum Panels and Plates

Large flat panels may appear simple to fixture, but long welds can create challenges with local lifting, unsupported spans, and dimensional stability.

Important considerations include:

• Flat and stable backing surfaces

• Distributed support beneath the panel

• Clamps positioned near the joint

• Controlled clamp spacing

• Support at weld start and end regions

• Accommodation of thermal expansion along long welds

The fixture should maintain local joint stability without unnecessarily over-constraining the entire panel.

Aluminum Extrusions

Extruded aluminum components may contain hollow sections, ribs, channels, or other internal features that affect backing and clamping.

Fixture design should evaluate:

• Cross-sectional stiffness

• Internal cavities beneath the weld

• Local backing requirements

• Risk of profile deformation

• Suitable locating surfaces

• Clamp contact areas

• Tool access around raised features

Shaped supports or dedicated backing inserts can help transfer process forces without crushing or distorting the extrusion.

Thin Aluminum Sheets

Thin sheets are particularly sensitive to localized clamp pressure and unsupported deflection.

Fixture strategies may include:

• Distributed clamping

• Larger clamp contact areas

• Soft or replaceable contact pads

• Continuous or closely supported backing

• Reduced unsupported spans

• Vacuum assistance where suitable

The objective is to provide sufficient restraint without introducing clamp marks or local deformation.

Large Aluminum Structures

Large structures create additional challenges because fixture stiffness, machine travel, thermal movement, and accessibility must be managed over a larger working area.

Design considerations include:

• Fixture base rigidity

• Segmented backing systems

• Multiple clamping zones

• Controlled locating strategy

• Long-distance thermal expansion

• Machine working envelope

• Loading and unloading method

• Production floor accessibility

For very large parts, a modular or segmented fixture architecture may simplify manufacturing, adjustment, maintenance, and part loading.

Curved and Complex Components

Curved surfaces and three-dimensional components may require custom support that follows the workpiece geometry.

Possible fixture features include:

• Contoured backing surfaces

• Adjustable support points

• Custom locating blocks

• Segmented fixture sections

• Multiple clamp orientations

• Dedicated clearance around curved tool paths

CAD-based interference checking becomes particularly important when the tool orientation or weld path changes during welding.

Fixture Priorities by Application

Key Point: There is no universal aluminum FSW fixture design. The fixture should be developed around the actual component geometry, weld path, process loads, machine access, and production requirements.

Conclusion

Effective fixture design for aluminum friction stir welding requires more than simply holding the workpiece in place. The fixture must maintain accurate joint positioning, provide stable backing support, resist FSW process forces, control part movement, accommodate thermal expansion, and maintain sufficient clearance for the welding tool and machine.

A reliable FSW fixture should therefore be designed as an integrated system combining:

Locating + Backing Support + Clamping + Rigidity + Thermal Movement + Tool Clearance + Repeatability

The final design should always be validated through actual welding trials to confirm workpiece stability, dimensional accuracy, weld quality, and cycle-to-cycle consistency.

Zhihui Welding provides friction stir welding equipment, tooling, and process solutions for aluminum components, helping manufacturers develop stable and repeatable FSW processes for different part geometries and production requirements.

FAQ About Aluminum FSW Fixture Design

What are the key requirements for an aluminum FSW fixture?

An aluminum FSW fixture should provide sufficient rigidity, stable backing support, accurate workpiece location, effective clamping, tool clearance, and repeatable positioning. It should also accommodate thermal movement where necessary without allowing the joint to shift during welding.

How much clamping force is required for friction stir welding?

There is no universal clamping-force value for every FSW application. The required force depends on workpiece thickness, joint geometry, process forces, backing support, fixture stiffness, clamp position, and part geometry. The clamping system should prevent lifting, sliding, and joint separation without deforming the aluminum component.

How close should clamps be to an FSW joint?

Clamps should generally be positioned close enough to the weld region to control local lifting and movement while maintaining sufficient clearance for the FSW tool, shoulder, holder, and spindle. The appropriate position and spacing depend on workpiece stiffness, thickness, weld length, backing support, and tool geometry.

What is the purpose of a backing plate in friction stir welding?

An FSW backing plate supports the workpiece beneath the weld region and resists downward tool forces. It helps limit local deflection and maintain consistent tool penetration. Backing plate stiffness, surface contact, material, geometry, and thermal behavior can all influence fixture and welding performance.

How can an FSW fixture reduce aluminum distortion?

A fixture can help control distortion by providing stable backing, distributed support, appropriate clamping, and a clear locating strategy. For large or long aluminum components, the design may also need to allow controlled thermal movement rather than completely restricting expansion in every direction.

What material should be used for an FSW fixture?

There is no single fixture material that is best for every FSW application. Material selection should consider stiffness, strength, wear resistance, thermal behavior, machinability, service life, and cost. Different materials or replaceable inserts may also be used within the same fixture depending on their function.

Should I use a modular or custom FSW fixture?

Modular fixtures are useful for prototypes, multiple part variants, and applications requiring frequent reconfiguration. Custom fixtures are generally better suited to dedicated components where high rigidity, precise support, and production repeatability are priorities. Some applications use a hybrid approach combining modular and custom elements.

How do you validate an FSW fixture before production?

Validate the fixture through actual trial welds. Check workpiece positioning before welding, fixture and clamp stability during welding, and distortion, dimensions, weld quality, and fixture condition afterward. Multiple welding cycles should be performed to confirm cycle-to-cycle repeatability before the fixture is released for production.
