Zhihui provides copper–aluminum friction stir welding services for dissimilar metal components, including Cu-Al busbars and electrical connection parts.
We support process evaluation, sample welding and batch production, with welding solutions developed according to your material grades, joint design, thickness, performance requirements and production volume.Zhihui provides copper–aluminum friction stir welding services for dissimilar metal components, including Cu-Al busbars and electrical connection parts.
We support process evaluation, sample welding and batch production, with welding solutions developed according to your material grades, joint design, thickness, performance requirements and production volume.
Copper and aluminum are widely used together in electrical and thermal systems because they offer different advantages in conductivity, weight and material cost. However, producing a reliable copper–aluminum joint is more challenging than welding similar metals.
Zhihui provides copper–aluminum friction stir welding services for busbars, electrical connection components and other dissimilar Cu-Al structures.
Instead of applying one standard welding parameter set to every project, we evaluate the actual copper and aluminum grades, material thickness, joint configuration, weld path and required joint performance before developing the FSW process.
From feasibility evaluation and sample welding to repeat production, our goal is to establish a practical and repeatable Cu-Al joining process for your application.
Copper and aluminum have significantly different thermal, physical and mechanical properties. During dissimilar-metal welding, heat input and material flow must be carefully controlled to achieve a stable joint interface.
For copper–aluminum FSW, particular attention must be paid to heat input, tool position, material placement, tool geometry and welding parameters.
Another important consideration is the formation of copper–aluminum intermetallic compounds (IMCs) at the joint interface. Their type, distribution and amount can affect the mechanical and electrical behavior of the joint.
For this reason, a successful Cu-Al FSW process is not simply about joining two materials. It requires a controlled process window that balances material flow, interface bonding and heat generation according to the application requirements.
For a deeper technical discussion of copper welding challenges, heat input, tool selection and defect control, see our friction stir welding of copper guide.
Friction stir welding is a solid-state joining process. The joint is formed through frictional heating, plastic deformation and controlled material movement without bulk melting of the base materials.
For suitable Cu-Al applications, this provides several important manufacturing advantages.
Requirement
How FSW Helps
Dissimilar metal joining | Enables direct joining of copper and aluminum through a controlled solid-state process. |
Heat input control | Avoids a conventional molten weld pool and allows heat generation to be managed through process parameters. |
Joint consistency | CNC-controlled tool movement supports repeatable weld paths and process conditions. |
Reduced thermal distortion | Localized process heat can help limit distortion compared with many fusion-welding processes. |
Production repeatability | Validated process parameters can be transferred from sample trials into repeat production. |
Automation | The process can be implemented on dedicated FSW equipment for production manufacturing. |

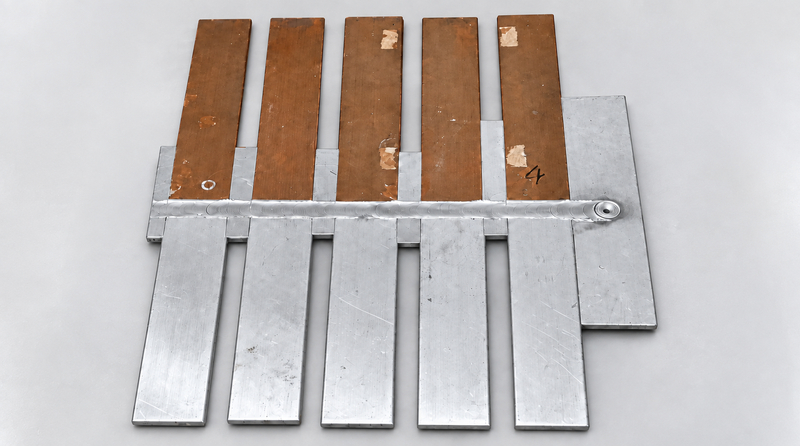

Copper–aluminum busbars are an important application for dissimilar-metal FSW.
Copper offers high electrical conductivity, while aluminum provides lower weight and can reduce material usage and cost in suitable sections of an electrical connection system. Joining the two materials allows engineers to use each material where its properties are most valuable.
Typical applications include electrical power distribution, energy storage systems, EV electrical systems and industrial power equipment.
For busbar projects, welding quality should not be evaluated only by weld appearance. Depending on the application, the joint may also need to meet defined requirements for electrical performance, mechanical strength, dimensions and long-term reliability.
Zhihui therefore develops the welding process according to the actual busbar design and customer acceptance requirements rather than relying on a fixed Cu-Al welding recipe.
We first review the copper and aluminum grades, part geometry, material thickness, joint configuration, weld path and functional requirements.
For electrical components, the evaluation may include electrical resistance or conductivity requirements. For structural applications, mechanical strength and dimensional requirements may become the primary acceptance criteria.
The joint design is reviewed to determine whether friction stir welding is suitable and how the two materials should be positioned during welding.
Depending on the component design, butt joints, lap joints or other suitable interface configurations can be evaluated. Tool access, backing support, clamping and available welding space are also considered at this stage.
Copper presents different thermal and tooling requirements from conventional aluminum FSW. Tool material, shoulder and pin geometry, fixture rigidity and heat management therefore need to be selected according to the actual material combination and joint design.
For projects requiring application-specific tooling, we also develop custom friction stir welding tools for aluminum and copper based on the material, thickness, joint configuration and welding conditions.
Initial welding trials are used to establish a stable process window.
Rotation speed, travel speed, axial force, tool position and other process variables are adjusted according to weld formation and the required joint performance.
Once the process has been evaluated and validated against the agreed requirements, the welding parameters and fixture configuration can be transferred into sample, small-batch or repeat production.
For customers planning to establish the process in-house, the validated application requirements can also provide the basis for evaluating a suitable friction stir welding machine and production configuration.
Copper–aluminum FSW does not have one universal parameter set.
The final welding solution depends on several interacting factors, including the actual copper and aluminum grades, material thickness, joint configuration, material positioning, tool offset, backing condition and required joint performance.
These variables affect heat generation, material flow and interface formation, which is why we recommend reviewing the actual component drawing before confirming a welding process.
The validation method should be defined according to the function and acceptance requirements of the finished joint.
Depending on the project, evaluation may include visual inspection, cross-section examination, dimensional inspection, mechanical testing and electrical performance testing where required.
For busbars and other electrical components, the required electrical acceptance criteria should be confirmed before production. For mechanical or structural applications, the validation plan may place greater emphasis on joint strength, interface quality and dimensional consistency.
The final inspection scope and acceptance method can be agreed according to the customer's project requirements.
Zhihui supports different stages of copper–aluminum FSW projects, from early feasibility evaluation and sample welding to repeat production.
Customers can provide pre-machined components for welding evaluation. If additional machining, fixture or manufacturing support is required, the project scope can be evaluated according to the actual component and production requirements.
For customers planning to bring the process in-house, Zhihui can also support the transition from process evaluation to dedicated FSW equipment, fixtures and tooling.
Copper–aluminum busbars
Electrical connection components
Power distribution components
Energy storage electrical connections
EV electrical system components
Custom copper–aluminum dissimilar-metal joints
You can also explore our broader friction stir welding applications for EV, thermal management and industrial manufacturing projects.
We have practical experience in copper–aluminum friction stir welding and develop the process around real component, joint and production requirements.
Our evaluation considers materials, joint design, tooling, fixture requirements, welding parameters and validation criteria rather than treating welding as an isolated production step.
Because we work with both contract welding and dedicated FSW equipment, we can support customers from early sample evaluation through production implementation.
Copper and dissimilar-metal applications can place higher demands on the welding tool. Our tooling capability allows tool selection and geometry to be considered together with the overall process solution.
Project Information
What to Provide
Drawing | 2D drawing and 3D model if available |
Materials | Exact copper and aluminum grades |
Thickness | Thickness of both materials |
Joint design | Butt, lap or other configuration |
Material position | Upper/lower arrangement for lap joints or required material orientation if already defined |
Weld path | Weld location, length and geometry |
Functional requirement | Electrical, mechanical, thermal or sealing requirement |
Quality criteria | Required inspection and acceptance standards |
Production requirement | Prototype quantity and expected production volume |
Yes. Friction stir welding can be used to join copper and aluminum in suitable joint designs. However, Cu-Al welding requires careful control of heat input, material positioning, tool design and welding parameters because the two materials have significantly different properties.
Yes. Cu-Al busbars are an important application for friction stir welding. The process can create a solid-state metallurgical joint between copper and aluminum for electrical connection applications. The final process should be validated according to the required electrical, mechanical and dimensional performance.
No. Intermetallic compounds can form in copper–aluminum FSW joints. Process development therefore focuses on controlling heat input, material flow and interface conditions so that the joint meets the required mechanical and electrical performance.
Weldability depends on the specific copper and aluminum grades, thicknesses, joint design and required performance. Please provide the exact material specifications so our engineering team can evaluate the application before confirming the process.
Yes. Sample welding and process validation are recommended for new copper–aluminum material combinations or joint designs before repeat production.
Yes. In addition to contract welding, we provide dedicated friction stir welding equipment, tooling, fixtures and process development for customers planning in-house production.
Please send the component drawing, copper and aluminum grades, material thicknesses, joint configuration, weld path, functional requirements, inspection criteria and expected production volume.
Need to evaluate whether friction stir welding is suitable for your copper–aluminum component?
Send us your drawing, material grades, thickness, joint design and performance requirements. Our engineering team will review the application and recommend a practical welding solution based on your actual project requirements.
Send Your Drawing for FSW Evaluation
