Solid-state joining eliminates traditional fusion welding issues like porosity and solidification cracking. However, the process introduces a unique set of thermo-mechanical challenges in aluminum alloys. Unidentified defects in critical aluminum components lead to catastrophic fatigue failures, costly recalls, and production bottlenecks. Whether you manufacture electric vehicle battery trays, aerospace panels, or automotive structural parts, structural integrity remains non-negotiable. Achieving zero-defect production requires a rigorous understanding of defect morphology, root cause analysis tied to process parameters, and the implementation of reliable non-destructive testing frameworks. By mastering these elements, manufacturers can fully leverage Friction Stir Welding Aluminum to produce joints that outlast and outperform conventional alternatives. We must move beyond visual inspections and understand the exact mechanics occurring beneath the tool shoulder.
Solid-State is Not Flawless: Friction stir welding aluminum prevents hot cracking but is highly susceptible to parameter-driven defects like wormholes, kissing bonds, and excessive flash.
Heat Input is the Primary Variable: The majority of internal and surface defects stem from an imbalance between spindle speed (heat generation) and traverse speed (heat distribution).
Hidden Flaws Compromise Fatigue Life: Sub-surface defects, particularly lack of penetration and kissing bonds, drastically reduce the fatigue life of aluminum joints even when the surface appears visually acceptable.
Material State Matters: Welding cast aluminum alloys introduces distinct defect risks (such as gas-driven surface blistering and groove-like voids) compared to welding wrought series.
In-Process Monitoring is Mandatory for Scale: Transitioning from R&D to high-volume production requires integrating force, torque, and temperature monitoring alongside post-weld NDT.
Table of Contents
Establishing the baseline for acceptable weld quality requires defining strict success criteria. You cannot evaluate joint integrity purely on surface aesthetics. A smooth surface often hides severe internal voids. We define success through specific, measurable metrics. These criteria encompass required tensile strength, fatigue resistance, and visual acceptance limits. You must evaluate the joint holistically. The thermo-mechanical affected zone dictates how material flows during the joining process. Understanding the material flow dynamics on the advancing side versus the retreating side dictates where defects will likely form. The advancing side experiences higher shear forces, making it the primary location for void formation.
Varying thermal conductivities and yield strengths alter the defect risk profile significantly. When welding dissimilar aluminum joints, such as combining 6xxx series with 7xxx series alloys, the material flow becomes asymmetrical. This asymmetry demands precise offset adjustments and tool positioning to prevent void formation. You must position the tool slightly off-center toward the harder alloy to balance the heat generation. Managing the unique challenges of friction stir welding aluminum die castings requires specific attention. Castings frequently introduce gas porosity expansion, oxide film inclusion, and surface blistering under high-temperature plastic deformation. You must adapt your parameter windows to accommodate these inherent material variations. Die castings require lower heat inputs to prevent trapped gases from expanding and rupturing the weld surface.
To establish a robust production baseline, engineering teams must implement a structured validation sequence. We rely on a combination of destructive and non-destructive evaluations to map the process window. The following steps outline a standard validation protocol for new aluminum joints:
Execute a parameter sweep varying spindle speed and traverse speed by 10% increments.
Perform transverse tensile testing on all samples to identify the ultimate tensile strength peak.
Conduct macro-sectioning on the highest-strength samples to verify the absence of root flaws.
Run fatigue testing on the optimized parameter set to establish lifecycle baselines.
Correlate the successful parameters with the machine's Z-axis force and spindle torque data.
Identifying the root cause of a defect requires understanding the mechanical forces at play beneath the tool. Defects generally fall into distinct categories based on their location and formation mechanism. We categorize these flaws to streamline troubleshooting on the production floor.
Insufficient heat input or excessive traverse speed causes inadequate plasticization and material flow. The aluminum fails to reach the necessary flow stress, preventing it from consolidating behind the pin. This lack of flow typically forms volumetric defects on the advancing side of the weld. Identifying these sub-surface voids requires cross-sectional analysis or advanced non-destructive testing. Cavities and groove-like defects frequently cluster at the transition zone between the tool shoulder and the pin on the forward advancing side near the weld surface. When operators see a wormhole, the immediate corrective action involves either increasing spindle RPM or decreasing traverse speed to pump more heat into the joint.
Inadequate plunge depth, incorrect pin length, or oxide layer retention at the root of the weld creates severe structural flaws. Kissing bonds represent solid-state interfaces with no metallurgical bond. The material touches but does not fuse. They are notoriously difficult to detect and require high-frequency ultrasonic testing. The joint configuration alters the path and detection of lack-of-penetration flaws. Butt joints and lap joints manifest these oxide lines differently under stress. In a butt joint, a lack of penetration acts as a sharp notch at the root, immediately initiating fatigue cracks under transverse loading. Fixing root flaws requires recalibrating the Z-axis position or increasing the downward forging force.
Excessive heat input from high spindle speed or low traverse speed causes plasticized aluminum to extrude outside the weld zone. The material becomes too soft and escapes the containment of the tool shoulder. Excessive tool downforce also contributes to this extrusion. Visual inspection easily identifies excessive flash. This defect indicates wasted energy and requires secondary machining operations to remove the excess material. Surface galling occurs when the tool shoulder runs too cold, tearing the surface rather than forging it smooth. Balancing the shoulder plunge depth and the heat input resolves most surface morphological issues.
Hooking occurs due to the upward flow of the bottom sheet material into the top sheet during lap welding. The pin threads pull the bottom interface upward, creating a sharp stress concentration point within the joint. Metallographic sectioning remains the best way to identify hooking. The severity of this defect is highly dependent on pin thread design and plunge depth. Using a pin with a reversed thread pitch or a fluted design can mitigate the upward material flow, keeping the interface flat and maximizing the shear strength of the lap joint.
Defect Classification | Visual / NDT Signature | Primary Root Cause | Immediate Corrective Action |
|---|---|---|---|
Wormholes / Tunnels | Sub-surface voids on advancing side (PAUT) | Cold weld; insufficient plasticization | Increase RPM or decrease traverse speed |
Lack of Penetration (LOP) | Unbonded root seam (Macro-section) | Pin too short; inadequate plunge depth | Increase Z-axis depth; verify pin length |
Kissing Bonds | Tight unbonded interface (High-freq PAUT) | Retained oxide layers; low forging force | Improve pre-weld cleaning; increase downforce |
Excessive Flash | Heavy material extrusion on surface | Hot weld; excessive downforce | Decrease RPM; reduce Z-axis force |
Hooking (Lap Joints) | Upward migration of bottom sheet | Aggressive pin thread pulling material up | Change pin geometry; optimize plunge depth |
Surface Galling | Rough, torn surface finish | Cold shoulder; inadequate consolidation | Increase plunge depth slightly; increase RPM |
Defects directly compromise the mechanical integrity of the welded structure. Sharp-edged defects like lack of penetration and kissing bonds act as severe stress concentrators. These flaws lead to premature dynamic failure under cyclic loading. Lack-of-penetration defects cause the most aggressive, catastrophic reduction in joint fatigue life compared to volumetric cavities or surface flash. The sharp geometry of a root flaw propagates cracks rapidly through the cross-section. We observe that a 0.5mm lack of penetration can reduce the fatigue life of a 6061-T6 aluminum joint by over 60%.
Mapping the correlation between volumetric defect size and the reduction in ultimate tensile strength provides valuable engineering data. Large tunnels drastically reduce the load-bearing cross-section. When a wormhole occupies 20% of the weld thickness, the tensile strength drops proportionally, often failing in the thermo-mechanically affected zone rather than the heat-affected zone. Evaluating defect tolerance against stringent industry standards ensures structural safety. Aerospace standards like AWS D17.3 and automotive standards like ISO 25239 dictate strict allowable limits for internal voids and root flaws. You must align your internal quality control metrics with these standards to ensure compliance and liability protection.

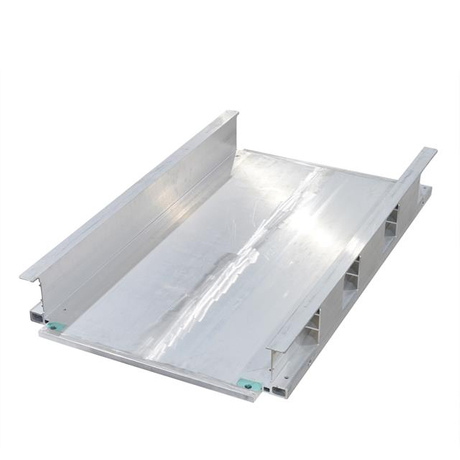

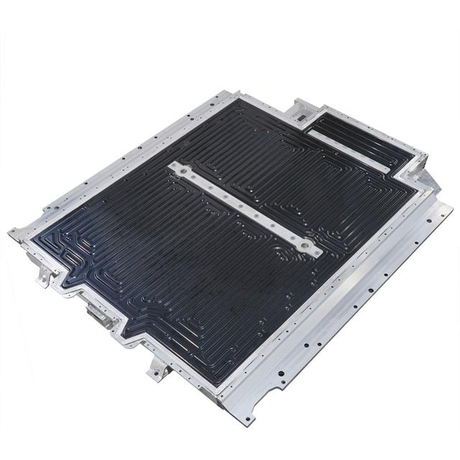

We must also consider the impact of defects on crashworthiness in automotive applications. Battery trays and structural extrusions must absorb energy during an impact. Volumetric defects alter the deformation characteristics of the aluminum extrusion. Instead of folding and absorbing energy, a defective weld will unzip, transferring the impact force directly into the battery modules. This reality makes rigorous defect evaluation a mandatory component of the vehicle design phase.
Balancing spindle speed and traverse speed maintains the aluminum within its optimal plasticized temperature range without melting. Optimizing this heat input matrix prevents both cold-weld voids and hot-weld flash. You must establish a process window that accommodates minor variations in material thickness and ambient temperature. Evaluating shoulder designs helps achieve proper surface consolidation. Concave and scrolled shoulders offer different advantages for flash containment. A scrolled shoulder allows for zero-tilt welding, which simplifies robotic programming and reduces clearance issues in tight geometries.
Selecting the right pin profiles optimizes vertical and horizontal material flow. Threaded, fluted, and tapered pins address different alloy viscosities. For hard alloys like 7075, a robust tapered pin with flats provides aggressive stirring without snapping under high lateral loads. Trade-offs exist between force-controlled and position-controlled equipment. Calibrating downforce and plunge depth maintains consistent root penetration despite material thickness variations. Force-control systems automatically adjust the Z-axis position to maintain a constant forging pressure, drastically reducing the occurrence of lack of penetration over long extrusion welds.
Mitigation protocols for eliminating kissing bonds require strict pre-weld surface preparation. Removing heavy oxides and surface contaminants prior to welding ensures a clean solid-state interface. We mandate mechanical brushing or laser cleaning immediately before the parts enter the welding fixture. Relying on the tool to break up heavy oxide layers is a high-risk strategy that inevitably leads to intermittent kissing bonds and failed fatigue tests.
Phased Array Ultrasonic Testing represents the industry standard for detecting sub-surface tunnels and lack of penetration. PAUT utilizes multiple ultrasonic elements to sweep a sound beam through the weld volume, providing a detailed cross-sectional map of internal flaws. X-Ray and radiography are effective for finding volumetric cavities but remain limited in detecting tight kissing bonds. The orientation of a kissing bond often runs parallel to the X-ray beam, making it invisible on standard radiographs. Utilizing macro-sectioning, bend tests, and tensile testing during the initial parameter validation phase establishes a reliable baseline.
Mitigating production risks requires utilizing spindle torque, Z-axis force, and acoustic emission sensors. In-process monitoring detects defect formation in real-time. This scalability factor ensures that parameter drifts are caught before they produce scrap parts. When a wormhole begins to form, the spindle torque drops measurably because the tool encounters less resistance from the missing material. By setting tight control limits on the torque feedback loop, the machine controller can flag the exact location of the defect, allowing operators to quarantine the part immediately.
Implementing a robust QA strategy involves layering these inspection methods. We recommend the following inspection hierarchy for high-volume aluminum production:
100% In-process monitoring of Z-force and spindle torque.
100% Visual inspection for surface galling and excessive flash.
10% Sampling rate for Phased Array Ultrasonic Testing on critical load paths.
Shift-based destructive testing (macro-sectioning) to verify root penetration.
Friction Stir Welding Aluminum delivers outstanding joint quality and structural performance when process parameters, tooling, and inspection procedures are carefully controlled. By optimizing heat input, maintaining consistent material flow, and implementing comprehensive quality assurance strategies, manufacturers can effectively minimize welding defects and ensure long-term product reliability.

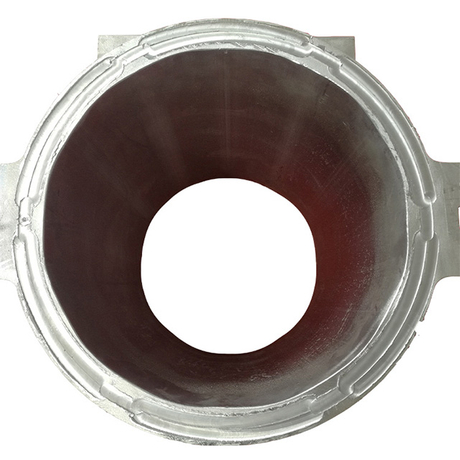

Working with an experienced friction stir welding technology provider is equally important for achieving stable production and consistent weld quality. Zhihui specializes in advanced friction stir welding equipment, customized FSW solutions, and professional technical support, helping manufacturers improve welding efficiency and product quality across aerospace, automotive, rail transit, battery, and other high-end manufacturing industries.Initiate a feasibility study focusing on parameter development and tool wear analysis before committing to full-scale production tooling.
Implement rigorous pre-weld cleaning protocols to mechanically remove oxide layers and prevent kissing bonds.
Integrate real-time force and torque monitoring systems to catch process deviations instantly.
Standardize your non-destructive testing utilizing Phased Array Ultrasonic Testing for all critical load-bearing joints.
A: Excessive flash is primarily caused by excessive heat input resulting from high spindle speeds or low traverse speeds. It can also occur when the tool downforce is too high, which extrudes the plasticized aluminum out from under the tool shoulder.
A: Kissing bonds are extremely tight solid-state interfaces without metallurgical bonding. They are difficult to detect with standard X-rays and typically require high-frequency Phased Array Ultrasonic Testing (PAUT) or destructive metallographic sectioning to identify accurately.
A: A tunnel defect is a volumetric void usually located sub-surface on the advancing side due to poor material flow. Lack of penetration is a root flaw where the pin fails to reach the bottom of the joint, leaving an unbonded seam.
A: Hooking forces the bottom sheet material upward into the top sheet, creating a sharp notch. This acts as a severe stress concentration point, significantly reducing both the tensile strength and fatigue life of the lap joint.
A: While advanced NDT like PAUT can find most volumetric and root flaws, extremely tight kissing bonds or micro-scale oxide inclusions may still evade detection. Destructive testing is required during initial parameter validation to ensure complete joint integrity.
A: Preventing cavities requires balancing the heat input matrix. You must optimize the ratio between spindle speed and traverse speed to ensure adequate plasticization and material flow without overheating the alloy.
