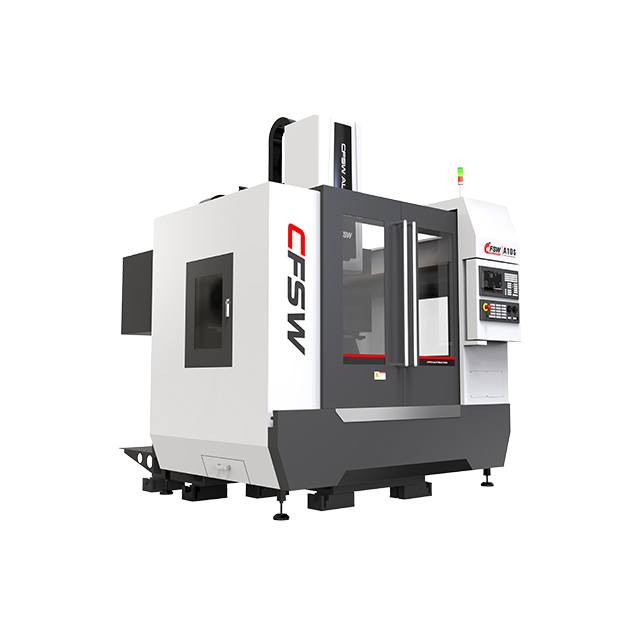

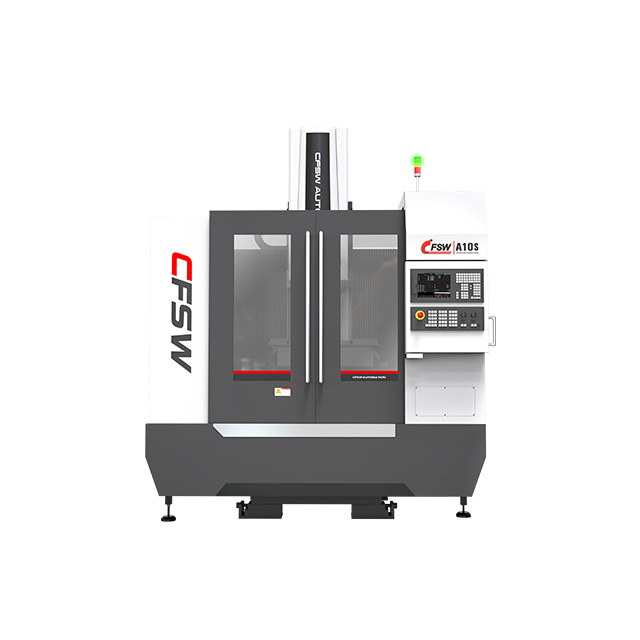

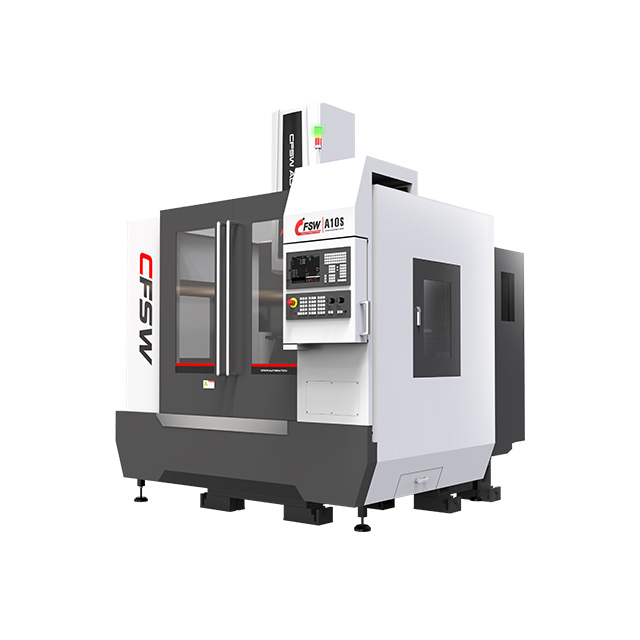

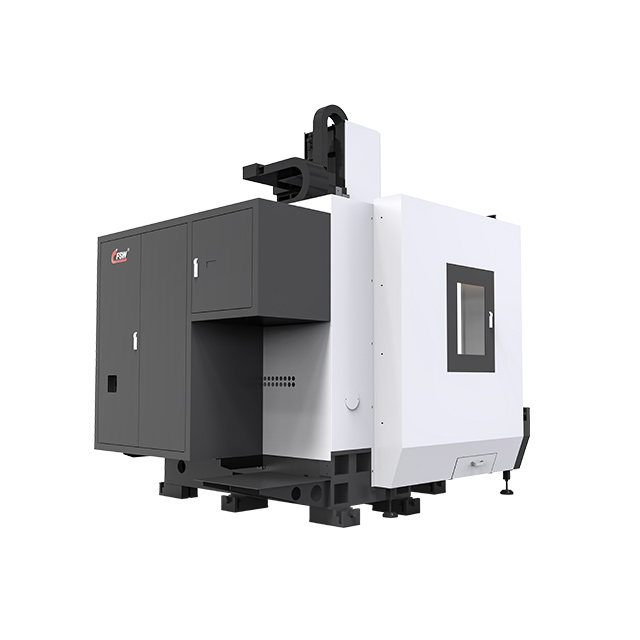

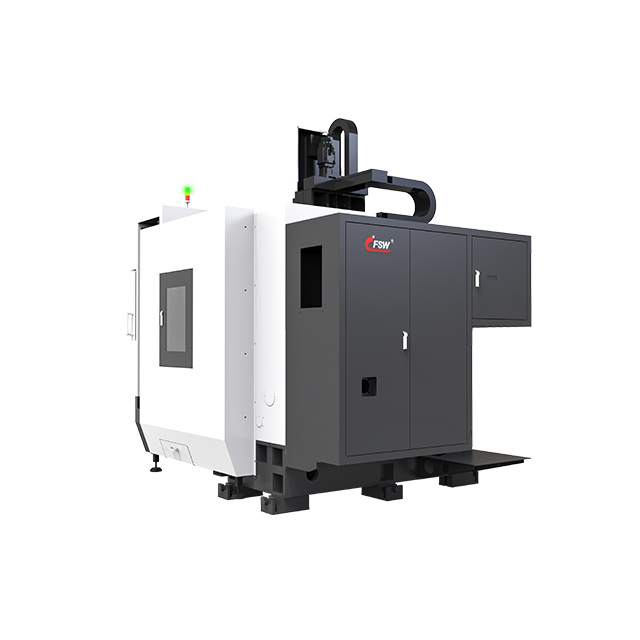

High-Precision Stable Robust FSW-A10S

Design

The welding head is the heart of the machine. It features a precisely designed tool holder that securely holds the friction stir welding tool. The tool itself is made from high - performance materials, such as advanced ceramics or heat - resistant alloys, capable of withstanding the high temperatures and mechanical stresses generated during welding. The spindle that drives the tool is powered by a high - torque motor, which offers precise control over the rotational speed and feed rate.

The control system of the machine is state - of - the - art. It utilizes a combination of advanced sensors and intelligent software algorithms. The sensors monitor various parameters in real - time, such as temperature, torque, and force, and the software adjusts the welding parameters accordingly to ensure optimal welding quality. The user interface is intuitive, with a large touchscreen display that allows operators to easily input and monitor the welding process.

Features

One of the key features of our high - precision friction stir welding machine is its exceptional accuracy. It can achieve extremely tight weld tolerances, making it suitable for applications that demand high - quality joints. The precise control over the welding parameters, such as rotational speed, feed rate, and tool plunge depth, ensures consistent weld quality from one joint to another.

The machine has a wide range of welding capabilities. It can handle different types of materials, including aluminum, magnesium, copper, and some composite materials. The ability to weld dissimilar materials is also a notable feature, opening up new possibilities in various industries.

Another feature is the advanced cooling system. It is designed to keep the welding tool and the surrounding components at an optimal temperature during the welding process. This not only extends the life of the tool but also helps to maintain the quality of the weld by preventing overheating and distortion of the workpiece.

Advantage

The high accuracy of our friction stir welding machine gives it a significant edge in the market. It enables the production of high - quality welded components that meet the strictest industry standards. This is particularly important in industries such as aerospace, where the reliability of the welds is crucial for the safety and performance of the aircraft.

The wide range of welding capabilities allows users to handle a diverse range of materials and applications. This versatility makes the machine a valuable asset for manufacturers, as it reduces the need for multiple welding machines for different materials.

The advanced cooling system not only saves on tool replacement costs but also improves the overall efficiency of the welding process. By preventing overheating and distortion, it reduces the need for post - welding processing, such as heat treatment or straightening, saving both time and cost.

Applications

This high - precision friction stir welding machine is widely used in the aerospace industry. It is used to weld aircraft structural components, such as fuselage panels, wing spars, and engine mounts. The high - quality welds provided by the machine ensure the strength and integrity of these components, contributing to the safety and performance of the aircraft.

In the automotive industry, the machine is used for welding lightweight materials, such as aluminum alloys, to reduce the weight of the vehicle and improve fuel efficiency. It can be used to weld components such as engine blocks, transmission cases, and body panels.

It is also suitable for the marine industry, where it can be used to weld components for ships and offshore platforms. The ability to weld dissimilar materials makes it useful for creating corrosion - resistant joints in marine environments.

FAQ

Q: Can the machine be used for continuous welding over a long period?

A: Yes, our machine is designed to handle continuous welding operations. The advanced cooling system and the robust construction of the machine ensure that it can operate for extended periods without overheating or significant wear. However, regular maintenance and inspection are recommended to ensure optimal performance.

Q: What kind of training is provided for operating the machine?

A: We provide comprehensive training for machine operators. This includes both theoretical training on the principles of friction stir welding and practical training on operating the machine. Our experienced technicians will teach the operators how to set up the machine, program the welding parameters, and perform basic maintenance tasks. We also offer after - sales support to ensure that the operators can use the machine effectively.
