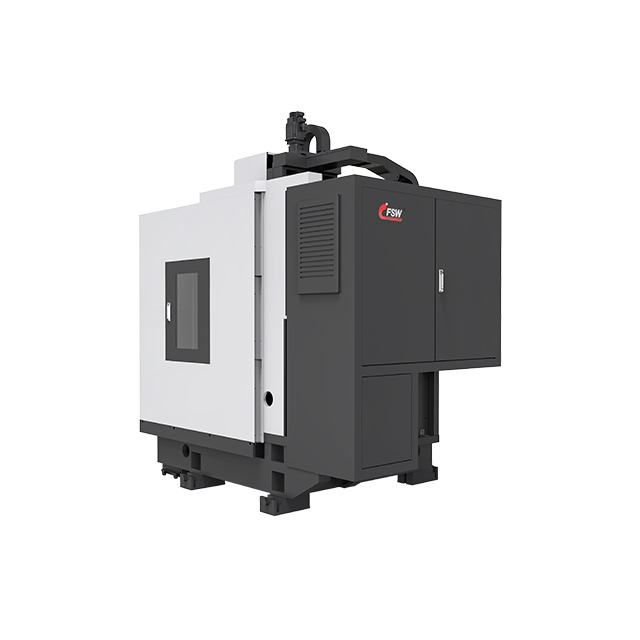

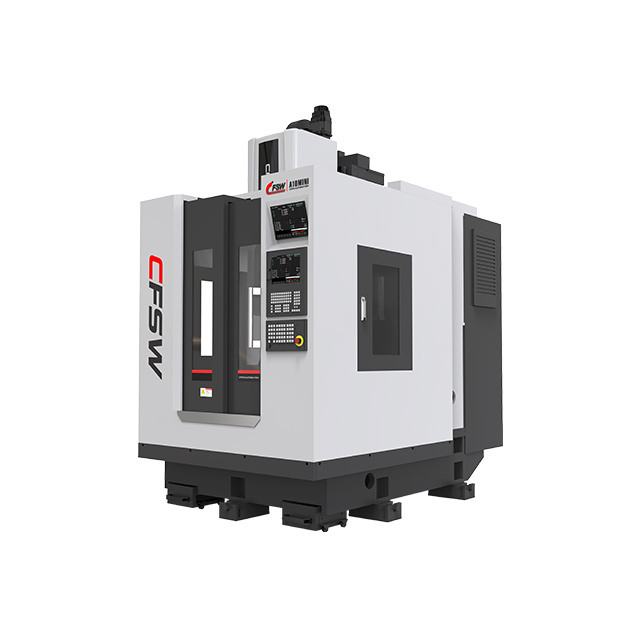

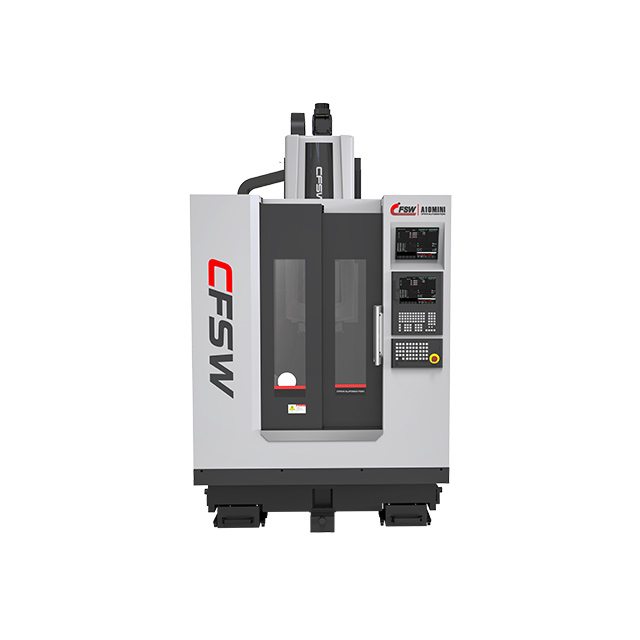

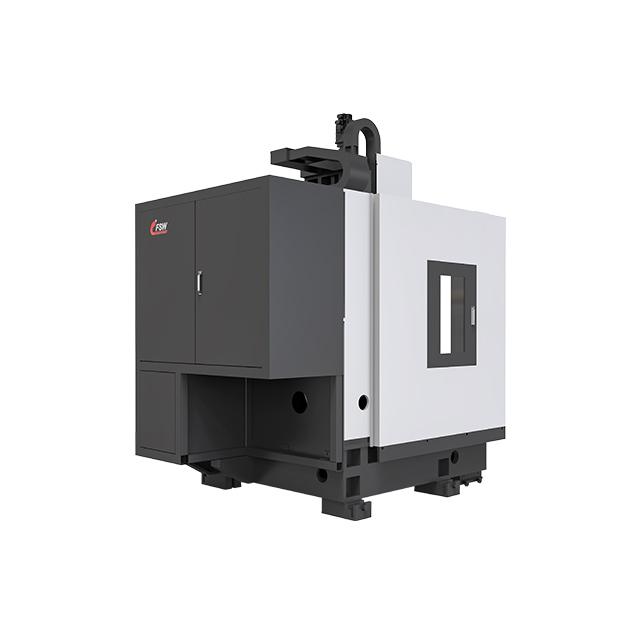

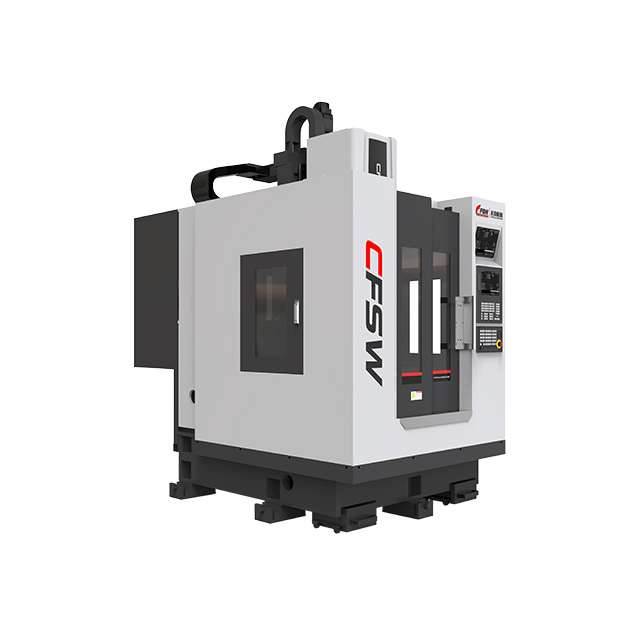

Advanced Heavy - Duty FSW-A10MINI

Design

The welding head is a robust assembly. It features a large - diameter tool holder capable of accommodating heavy - duty friction stir welding tools. The tool is made from high - durability materials, such as tungsten carbide or special alloy steels, to withstand the intense forces and high temperatures involved in welding thick materials. The spindle is powered by a high - power motor, which can deliver sufficient torque to drive the tool through the workpiece.

The control system of the heavy - duty machine is designed for reliability and ease of use. It uses a combination of programmable logic controllers (PLCs) and human - machine interfaces (HMIs). The PLCs ensure accurate control of the welding process, while the HMI provides an intuitive interface for operators to input and monitor the welding parameters. The machine also has a comprehensive safety system, including emergency stop buttons, safety interlocks, and protective guards, to ensure the safety of the operators.

Features

One of the prominent features of our heavy - duty friction stir welding machine is its high load - bearing capacity. It can handle thick and large workpieces with ease, making it suitable for industries such as shipbuilding, construction, and heavy machinery manufacturing.

The machine has a powerful spindle with a wide range of rotational speeds. This allows for flexible welding of different materials and thicknesses. The ability to adjust the rotational speed and feed rate precisely ensures that the welding process can be optimized for each specific application.

Another feature is the advanced data logging and monitoring system. It records all the important welding parameters, such as temperature, torque, and feed rate, during the welding process. This data can be used for quality control purposes and for analyzing the performance of the machine over time.

Advantage

The high load - bearing capacity of the heavy - duty machine enables it to take on large - scale welding projects that other machines may not be able to handle. This gives it a competitive advantage in industries where large and thick components need to be welded.

The powerful spindle and the ability to adjust the welding parameters provide flexibility in welding different materials and thicknesses. This allows manufacturers to use the machine for a variety of applications, reducing the need for multiple specialized welding machines.

The advanced data logging and monitoring system helps to ensure the quality of the welds. By analyzing the recorded data, manufacturers can identify any potential issues and make adjustments to improve the welding process. This also helps in meeting the strict quality requirements of various industries.

Applications

In the shipbuilding industry, our heavy - duty friction stir welding machine is used to weld the hull plates, bulkheads, and other large structural components of ships. The high - strength welds provided by the machine ensure the structural integrity of the ship.

In the construction industry, it can be used to weld large steel beams, columns, and other structural elements. The machine's ability to handle thick materials makes it suitable for building bridges, skyscrapers, and other large structures.

For the heavy machinery manufacturing industry, the machine is used to weld components of heavy equipment, such as excavators, cranes, and bulldozers. The high - quality welds contribute to the durability and reliability of these machines.

FAQ

Q: What is the maximum weight of the workpiece that the machine can handle?

A: The maximum weight of the workpiece that our heavy - duty friction stir welding machine can handle depends on the specific model and the configuration of the machine. Generally, it can handle workpieces weighing up to [X] tons. However, for accurate information, please refer to the product specifications of the model you are interested in.

Q: How often does the machine need to be maintained?

A: Regular maintenance is essential for the optimal performance of the machine. We recommend performing daily visual inspections to check for any signs of wear or damage. Monthly maintenance should include lubrication of the moving parts, checking the electrical connections, and verifying the accuracy of the sensors. Annual maintenance may involve more in - depth inspections and calibration of the machine.

Q: Can the machine be customized for specific welding requirements?

A: Yes, we offer customization services for our heavy - duty friction stir welding machine. We can adjust the machine's specifications, such as the size of the working area, the power of the spindle, and the type of control system, to meet your specific welding requirements. Please contact our sales team to discuss your customization needs.
