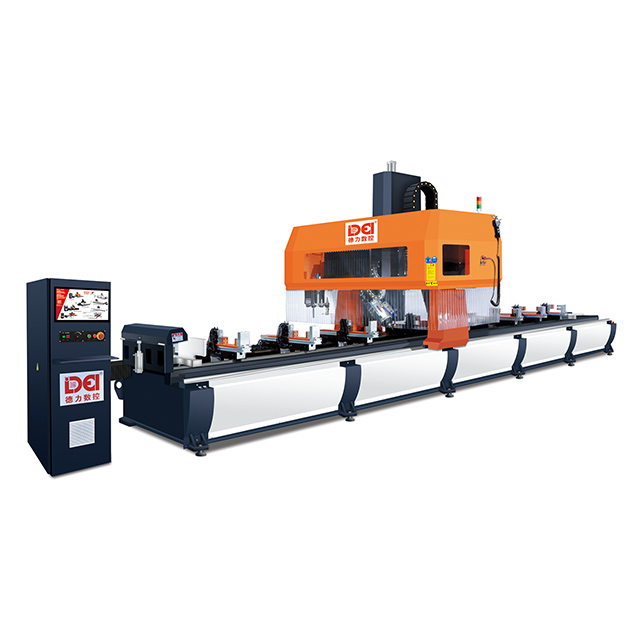

The X - axis is supported by a hydrostatic guide system. This system uses a thin film of pressurized oil to support the moving parts, providing virtually frictionless movement and excellent damping characteristics. The Y - axis features a linear motor drive, which offers high - speed, high - acceleration, and precise positioning capabilities. The Z - axis spindle is mounted on a rigid, box - type structure that provides maximum support and stability during machining.
The machine's base is made from a high - density polymer concrete. This material has excellent vibration - damping properties, which helps in reducing the vibrations generated during machining and improving the surface finish of the workpieces. The enclosure of the machine is designed to be airtight, preventing the escape of chips and coolant into the surrounding environment. It also has a built - in ventilation system that helps in maintaining a clean and cool working environment inside the machine.
The control system is a state - of - the - art CNC system that features a graphical user interface (GUI). The GUI allows operators to easily program the machine using a drag - and - drop interface, reducing the programming time and the chance of errors. The control system also has a built - in simulation function that allows operators to preview the machining process before starting the actual production.
One of the standout features of this Gantry CNC Processing Center is its high - speed machining technology. The combination of the hydrostatic guide system, the linear motor drive, and the high - performance spindle allows for extremely high cutting speeds and feed rates. This results in significantly reduced machining times and increased productivity.
The machine is equipped with a laser - based tool measurement system. This system can accurately measure the length, diameter, and wear of the cutting tools in real - time. It can also automatically compensate for tool wear during machining, ensuring consistent part quality.
The Gantry CNC Processing Center also has a built - in pallet changer. The pallet changer allows for quick and easy loading and unloading of workpieces, reducing the non - cutting time and increasing the overall machine utilization. The pallet changer can be configured to hold multiple pallets, enabling continuous machining operations.
The spindle is designed with a through - coolant function. This function allows the coolant to be delivered directly through the center of the tool, providing better cooling and lubrication at the cutting edge. This helps in reducing tool wear, improving chip evacuation, and achieving a better surface finish.
The high - speed machining technology of the Gantry CNC Processing Center offers a significant advantage in terms of productivity. By reducing the machining time, it allows manufacturers to produce more parts in less time, increasing their output and profitability. The laser - based tool measurement system and the automatic tool wear compensation feature ensure consistent part quality, reducing the need for post - machining inspection and rework.
The built - in pallet changer improves the machine utilization by reducing the non - cutting time. This means that the machine can spend more time on actual machining operations, increasing the overall productivity. The through - coolant function of the spindle enhances the tool life and the machining performance, reducing the tooling costs and improving the surface finish of the workpieces.
The user - friendly GUI of the control system and the simulation function make the programming and operation of the machine easier and more efficient. This reduces the training time for operators and allows them to quickly adapt to the machine.
This Gantry CNC Processing Center has a wide range of applications in different industries. In the aerospace industry, it can be used for machining large - scale aerospace components such as wing spars and fuselage panels. The high - speed machining capabilities and the precision of the machine are crucial for these applications.
In the automotive industry, it can be used for manufacturing automotive engine blocks, transmission cases, and suspension components. The ability to handle high - volume production with high precision makes it an ideal choice for the automotive sector.
In the energy industry, it can be used for machining components for power generation equipment such as turbine blades and generator rotors. The high - speed machining and the excellent surface finish achieved by the machine are important for these critical applications.
In the die - making industry, it can be used for creating complex dies and molds. The laser - based tool measurement system and the multi - axis machining capabilities allow for the precise machining of intricate die and mold cavities.
